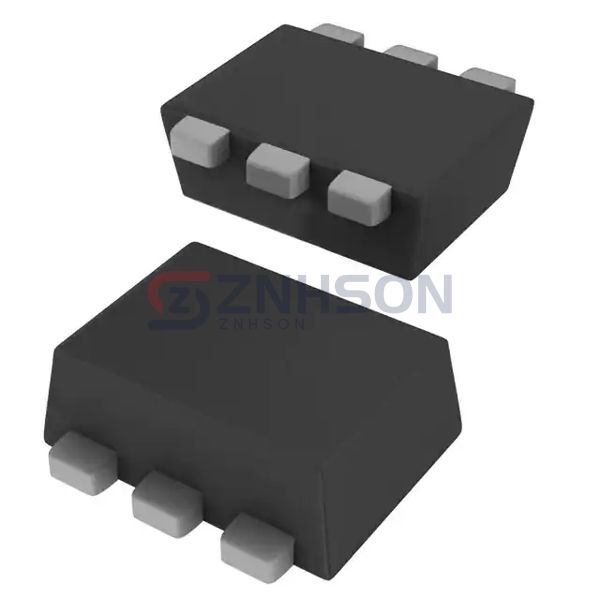

DST3946DPJ-7
Diodes Incorporated

Diodes Incorporated
TRANS NPN/PNP 40V 0.2A SOT963
$0.07
Available to order
Reference Price (USD)
10,000+
$0.07520
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DST3946DPJ-7 BJT Array from Diodes Incorporated brings military-grade robustness to commercial applications. With a wide operating temperature range (-55 C to +150 C), this Discrete Semiconductor Product performs flawlessly in downhole drilling equipment and satellite subsystems. Its symmetrical layout simplifies heat sink integration for high-power RF amplifiers. The DST3946DPJ-7 undergoes rigorous Q-Class testing to guarantee radiation hardness for aerospace deployments.
Specifications
- Product Status: Active
- Transistor Type: NPN, PNP
- Current - Collector (Ic) (Max): 200mA
- Voltage - Collector Emitter Breakdown (Max): 40V
- Vce Saturation (Max) @ Ib, Ic: 300mV @ 5mA, 50mA, 400mV @ 5mA, 50mA
- Current - Collector Cutoff (Max): -
- DC Current Gain (hFE) (Min) @ Ic, Vce: 100 @ 10mA, 1V
- Power - Max: 300mW
- Frequency - Transition: 300MHz
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: SOT-963
- Supplier Device Package: SOT-963
