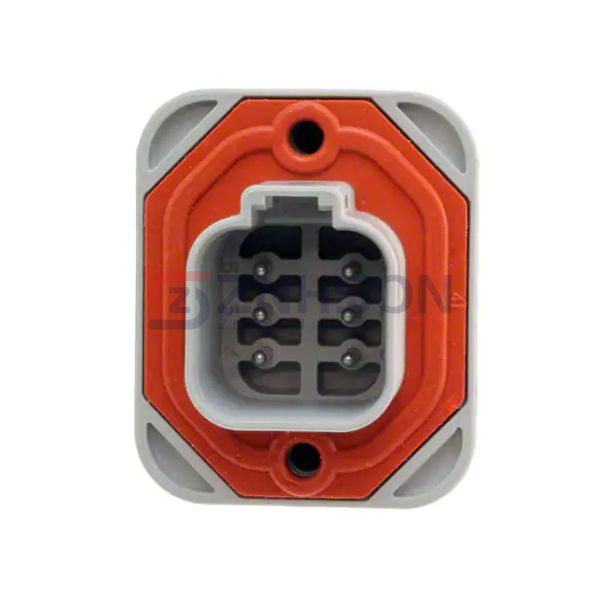

DT15-6P
TE Connectivity Deutsch Connectors
TE Connectivity Deutsch Connectors
CONN HEADER VERT 6POS 4.44MM
$14.86
Available to order
Reference Price (USD)
1+
$8.09000
10+
$7.75100
25+
$7.07720
50+
$6.74000
100+
$6.40300
250+
$5.72900
500+
$5.39200
1,000+
$4.71800
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DT15-6P by TE Connectivity Deutsch Connectors is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the DT15-6P supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. TE Connectivity Deutsch Connectors ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.175" (4.44mm)
- Number of Positions: 6
- Number of Rows: 2
- Row Spacing - Mating: 0.360" (9.14mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Panel Mount, Through Hole
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: -
- Contact Length - Post: 0.122" (3.10mm)
- Overall Contact Length: -
- Insulation Height: -
- Contact Shape: Circular
- Contact Finish - Mating: Nickel
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polyamide (PA), Nylon, Glass Filled
- Features: Mounting Flange
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Gray
- Current Rating (Amps): -
- Voltage Rating: 250VDC
