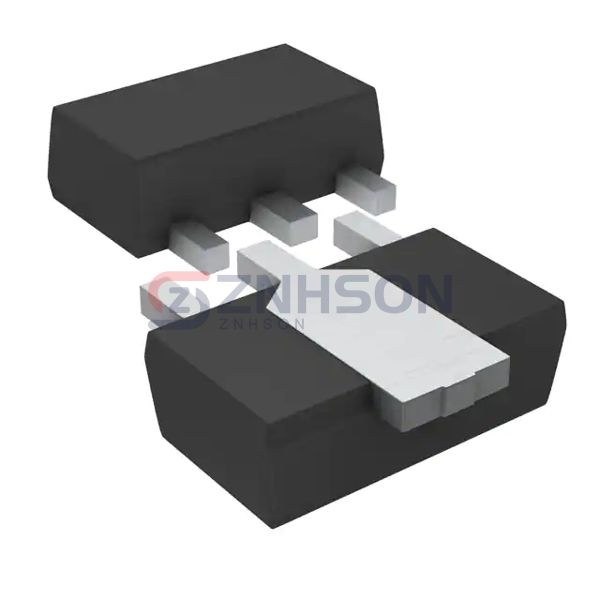

DTDG23YPT100
Rohm Semiconductor
Rohm Semiconductor
TRANS PREBIAS NPN 1.5W MPT3
$0.78
Available to order
Reference Price (USD)
1,000+
$0.27040
2,000+
$0.24505
5,000+
$0.23660
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Rohm Semiconductor's DTDG23YPT100 redefines reliability in the Transistors - Bipolar (BJT) - Single, Pre-Biased category. With built-in bias resistors, this component accelerates prototyping while maintaining signal integrity. Key features include 1) 300mA collector current capacity 2) Wide operating temperature range (-55 C to +150 C) 3) RoHS compliance. Implement in motor control systems, sensor interfaces, or battery-powered devices for optimal results.
Specifications
- Product Status: Active
- Transistor Type: NPN - Pre-Biased
- Current - Collector (Ic) (Max): 1 A
- Voltage - Collector Emitter Breakdown (Max): 60 V
- Resistor - Base (R1): 2.2 kOhms
- Resistor - Emitter Base (R2): 22 kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 300 @ 500mA, 2V
- Vce Saturation (Max) @ Ib, Ic: 400mV @ 5mA, 500mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: 80 MHz
- Power - Max: 1.5 W
- Mounting Type: Surface Mount
- Package / Case: TO-243AA
- Supplier Device Package: MPT3
