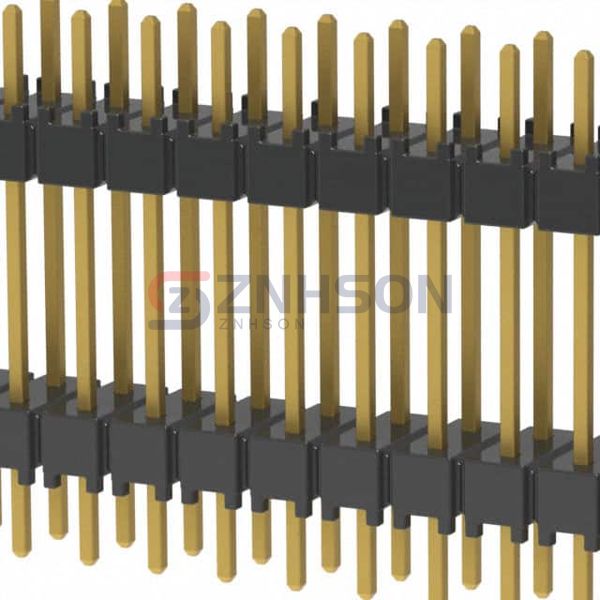

DW-17-10-G-D-500
Samtec Inc.
Samtec Inc.
CONN HDR 34POS 0.1 STACK T/H
$7.48
Available to order
Reference Price (USD)
1+
$4.48000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your PCB layouts with the DW-17-10-G-D-500 by Samtec Inc., a high-quality rectangular connector for board spacers and stackers. Designed for versatility, these connectors support various pitch options and mounting styles. The DW-17-10-G-D-500 is ideal for use in LED lighting, power supplies, and wearable technology. Specific applications include LED displays, AC/DC converters, and fitness trackers where compact and reliable connections are vital.
Specifications
- Product Status: Active
- Number of Positions: 34
- Pitch: 0.100" (2.54mm)
- Number of Rows: 2
- Row Spacing: 0.100" (2.54mm)
- Length - Overall Pin: 0.830" (21.082mm)
- Length - Post (Mating): 0.220" (5.588mm)
- Length - Stack Height: 0.500" (12.700mm)
- Length - Tail: 0.110" (2.794mm)
- Mounting Type: Through Hole
- Termination: Solder
- Contact Finish - Post (Mating): Gold
- Contact Finish Thickness - Post (Mating): 10.0µin (0.25µm)
- Color: Black
