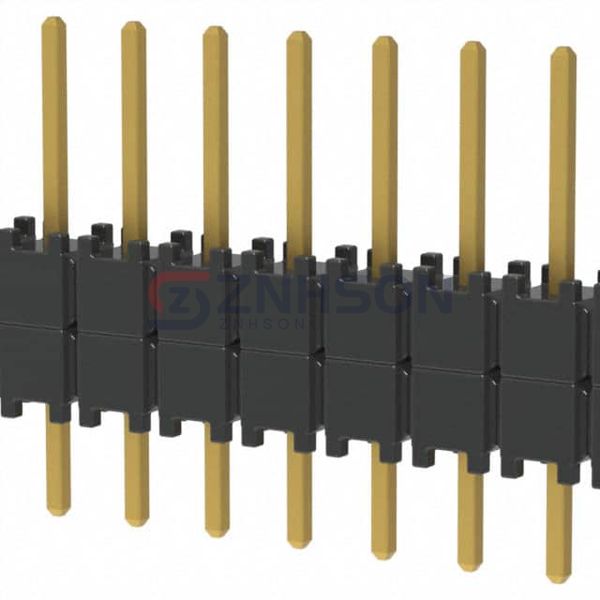

DW-20-08-G-S-200
Samtec Inc.
Samtec Inc.
CONN HDR 20POS 0.1 STACK T/H
$3.83
Available to order
Reference Price (USD)
1+
$2.37000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your PCB layouts with the DW-20-08-G-S-200 by Samtec Inc., a high-quality rectangular connector for board spacers and stackers. Designed for versatility, these connectors support various pitch options and mounting styles. The DW-20-08-G-S-200 is ideal for use in LED lighting, power supplies, and wearable technology. Specific applications include LED displays, AC/DC converters, and fitness trackers where compact and reliable connections are vital.
Specifications
- Product Status: Active
- Number of Positions: 20
- Pitch: 0.100" (2.54mm)
- Number of Rows: 1
- Row Spacing: -
- Length - Overall Pin: 0.530" (13.462mm)
- Length - Post (Mating): 0.220" (5.588mm)
- Length - Stack Height: 0.200" (5.080mm)
- Length - Tail: 0.110" (2.794mm)
- Mounting Type: Through Hole
- Termination: Solder
- Contact Finish - Post (Mating): Gold
- Contact Finish Thickness - Post (Mating): 10.0µin (0.25µm)
- Color: Black
