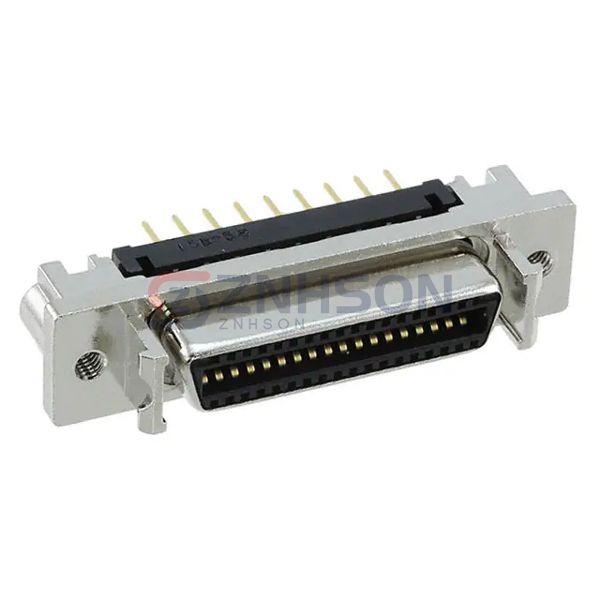

DX20-36S(50)
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN RECEPT 36POS STRT
$12.84
Available to order
Reference Price (USD)
1+
$11.22000
10+
$10.73600
30+
$9.76000
50+
$9.27200
100+
$9.02800
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Hirose Electric Co Ltd's DX20-36S(50) represents the gold standard in D-Shaped Centronics Connectors within the broader Connectors, Interconnects category. These components are characterized by their distinctive D-shell mechanical design that prevents incorrect mating and provides mechanical stability. Technical highlights include solder cup or PCB termination styles, operating temperatures from -40 C to +105 C, and current ratings up to 5A per contact. The primary application fields encompass data acquisition systems, military/aerospace electronics, and industrial control panels. Specific implementations include legacy server backplanes, robotic controller interfaces, and avionics test equipment where these connectors ensure fail-safe operation.
Specifications
- Product Status: Active
- Connector Style: Outer Shroud Contacts
- Connector Type: Receptacle
- Number of Positions: 36
- Number of Rows: 2
- Mounting Type: Panel Mount, Through Hole
- Termination: Solder
- Flange Feature: Housing/Shell (M2.6); Latchblocks
- Type: Miniature High Density (HD)
- Features: -
- Contact Finish: Gold
- Contact Finish Thickness: 7.87µin (0.200µm)
