DZ3S056D0L
Panasonic Electronic Components
Panasonic Electronic Components

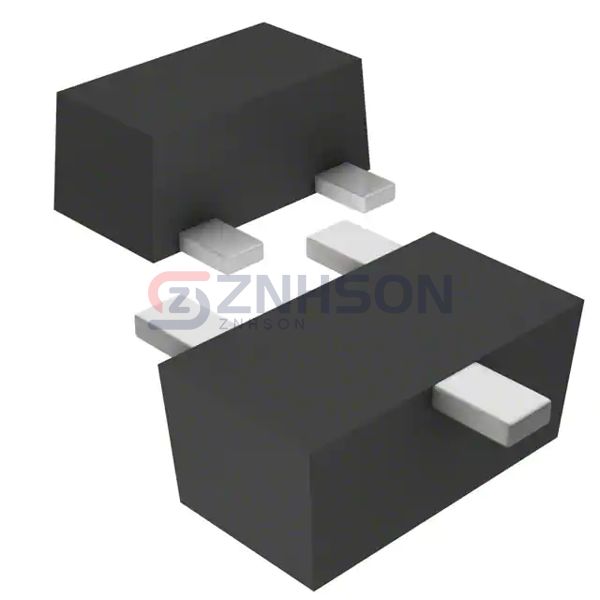

DIODE ZENER ARRAY 5.6V SSMINI3
$0.00
Available to order
Reference Price (USD)
6,000+
$0.05173
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Panasonic Electronic Components's DZ3S056D0L represents the cutting edge in Zener diode array technology within the discrete semiconductor products category. These components combine multiple Zener diodes with matched characteristics, ensuring uniform performance across all channels. Key features include low leakage current, precise voltage regulation, and excellent power dissipation capabilities. The product finds extensive use in telecommunications equipment for signal protection, medical devices for sensitive circuit safeguarding, and renewable energy systems for voltage stabilization. With its compact design and reliable operation, this Zener array is ideal for space-constrained applications requiring multiple voltage reference points.
Specifications
- Product Status: Discontinued at Digi-Key
- Configuration: 1 Pair Common Anode
- Voltage - Zener (Nom) (Vz): 5.6 V
- Tolerance: ±5%
- Power - Max: 150 mW
- Impedance (Max) (Zzt): 40 Ohms
- Current - Reverse Leakage @ Vr: 500 nA @ 2.5 V
- Voltage - Forward (Vf) (Max) @ If: 1 V @ 10 mA
- Operating Temperature: 150°C
- Mounting Type: Surface Mount
- Package / Case: SC-89, SOT-490
- Supplier Device Package: SSMini3-F3-B
