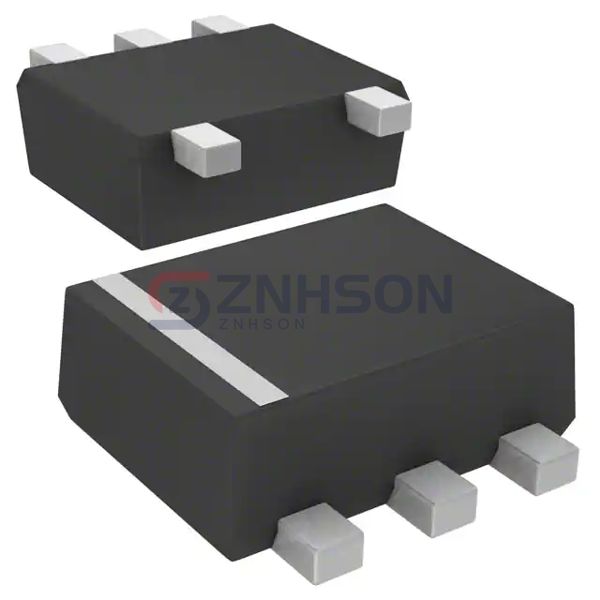

DZ5S100D0R
Panasonic Electronic Components
Panasonic Electronic Components
DIODE ZENER ARRAY 10V SSMINI5
$0.00
Available to order
Reference Price (USD)
8,000+
$0.27836
16,000+
$0.26950
24,000+
$0.26063
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for precision, the DZ5S100D0R from Panasonic Electronic Components is a top-tier Zener diode array in the discrete semiconductor products family. These arrays feature carefully selected and matched Zener diodes that deliver consistent performance across all channels. The product offers significant advantages in circuit design simplification, board space optimization, and system reliability improvement. Common implementations include voltage clamping in motor control systems, protection circuits for aerospace electronics, and reference voltage generation in smart grid equipment. With its excellent power handling capability and stable characteristics, this Zener array is the perfect choice for demanding electronic applications.
Specifications
- Product Status: Discontinued at Digi-Key
- Configuration: 2 Pair Common Anode
- Voltage - Zener (Nom) (Vz): 10 V
- Tolerance: -
- Power - Max: 150 mW
- Impedance (Max) (Zzt): 30 Ohms
- Current - Reverse Leakage @ Vr: 50 nA @ 7 V
- Voltage - Forward (Vf) (Max) @ If: 1 V @ 10 mA
- Operating Temperature: -
- Mounting Type: Surface Mount
- Package / Case: SOT-665
- Supplier Device Package: SSMini5-F4-B
