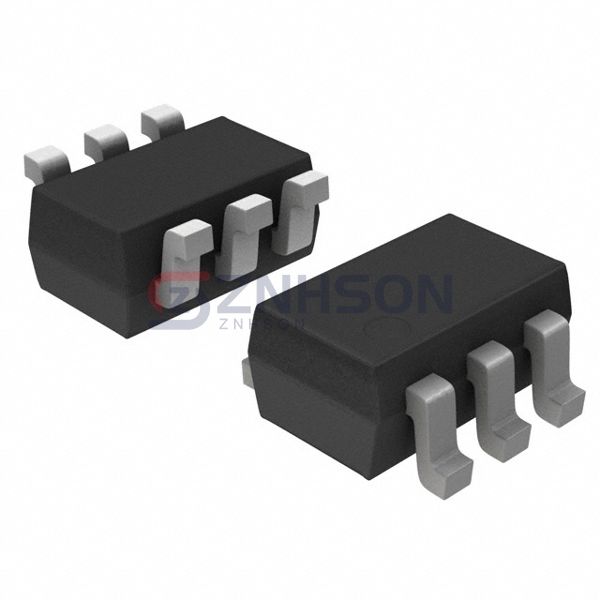

EGUARD0504F
SMC Diode Solutions
SMC Diode Solutions
TVS DIODE 5VWM 25VC SOT363
$1.64
Available to order
Reference Price (USD)
1+
$1.64000
500+
$1.6236
1000+
$1.6072
1500+
$1.5908
2000+
$1.5744
2500+
$1.558
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The EGUARD0504F from SMC Diode Solutions is a high-performance TVS diode designed for robust circuit protection. These diodes are essential for safeguarding sensitive electronic components from voltage spikes and transient events. With fast response times and high surge capabilities, the EGUARD0504F ensures reliable performance in demanding environments. TVS diodes are widely used in telecommunications, automotive, and industrial applications. For instance, they protect data lines in routers and prevent damage from electrostatic discharge (ESD) in automotive electronics. Choose SMC Diode Solutions's EGUARD0504F for superior protection and durability in your circuits.
Specifications
- Product Status: Active
- Type: Steering (Rail to Rail)
- Unidirectional Channels: 4
- Bidirectional Channels: -
- Voltage - Reverse Standoff (Typ): 5V (Max)
- Voltage - Breakdown (Min): 6V
- Voltage - Clamping (Max) @ Ipp: 25V
- Current - Peak Pulse (10/1000µs): 6A (8/20µs)
- Power - Peak Pulse: 150W
- Power Line Protection: Yes
- Applications: DVI, HDMI, USB 2.0, USB OTG
- Capacitance @ Frequency: 3pF @ 1MHz
- Operating Temperature: -55°C ~ 125°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 6-TSSOP, SC-88, SOT-363
- Supplier Device Package: SOT-363
Related Products
onsemi
SZESD7351P2T5G
Vishay General Semiconductor - Diodes Division
SMCG10A-E3/9AT
Littelfuse Inc.
SMBJ6.5CA-HR
Comchip Technology
SMBJ15A-HF
Microchip Technology
MASMBJ20AE3
Micro Commercial Co

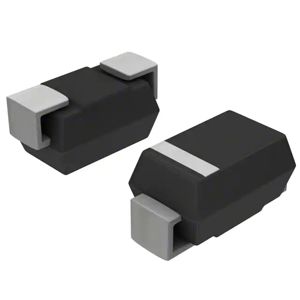

SMBJ150CA-TP
Vishay General Semiconductor - Diodes Division

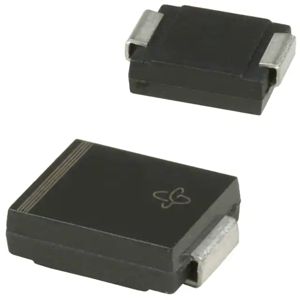

1.5SMC6.8CAHM3_A/I
Vishay General Semiconductor - Diodes Division

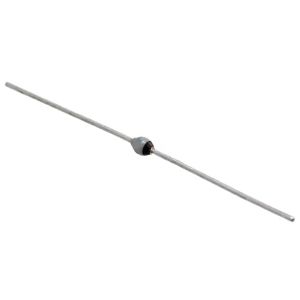

BZT03C12-TR
Littelfuse Inc.

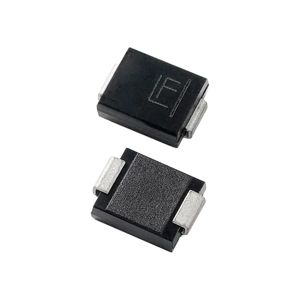

SMCJ20CA-HR
