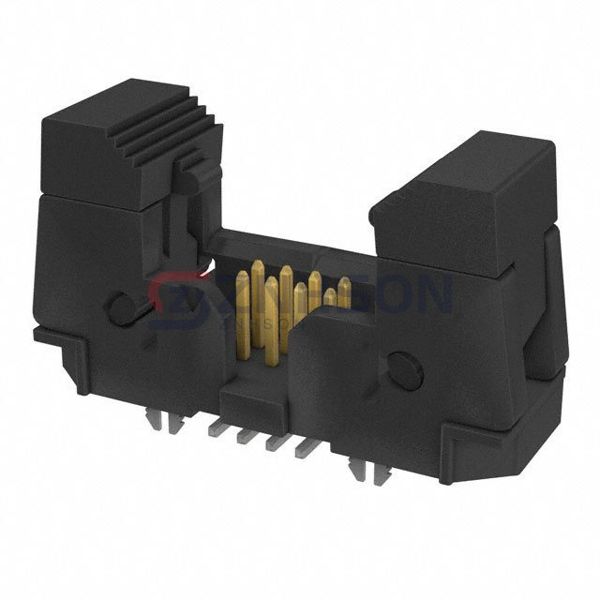

EHF-104-01-F-D-SM-LC-K
Samtec Inc.
Samtec Inc.
CONN HEADER SMD 8POS 1.27MM
$5.77
Available to order
Reference Price (USD)
1+
$4.28000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the EHF-104-01-F-D-SM-LC-K rectangular connector header from Samtec Inc.. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the EHF-104-01-F-D-SM-LC-K is perfect for automotive, industrial, and consumer electronics. Samtec Inc. ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 8
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Latch Lock/Eject Hooks
- Contact Length - Mating: 0.120" (3.05mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.325" (8.25mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 3.00µin (0.076µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
- Features: Board Lock, Keying Slot, Pick and Place
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): 1.75A
- Voltage Rating: -
Related Products
Samtec Inc.
MTMM-102-02-L-S-100
Harwin Inc.
M50-3610842
Samtec Inc.
FTSH-104-05-F-DV-P-TR
Mill-Max Manufacturing Corp.
850-90-029-20-001000
Samtec Inc.

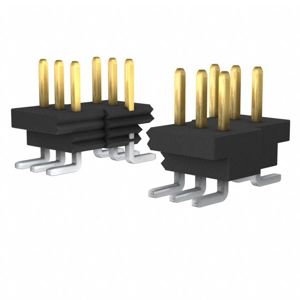

BKT-121-02-L-V
Cvilux USA

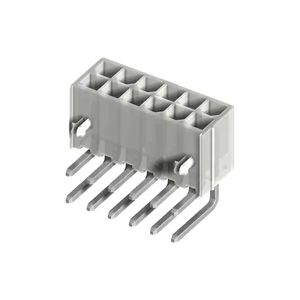

CP-01412150
Samtec Inc.
TFC-108-01-L-D
TE Connectivity AMP Connectors

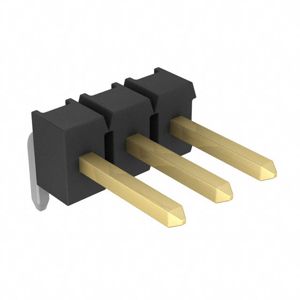

9-103325-0-03
Amphenol ICC (FCI)

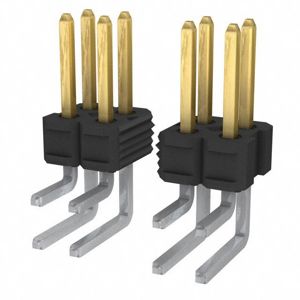

76350-103-72LF
