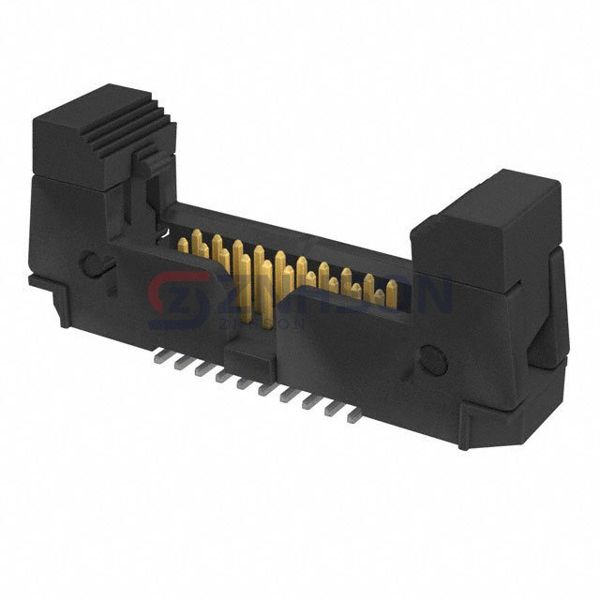

EHF-110-01-F-D-SM-P-TR
Samtec Inc.
Samtec Inc.
CONN HEADER SMD 20POS 1.27MM
$6.90
Available to order
Reference Price (USD)
150+
$3.80000
300+
$3.32500
750+
$2.94500
1,050+
$2.75500
1,500+
$2.66000
3,750+
$2.56500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the EHF-110-01-F-D-SM-P-TR rectangular connector header from Samtec Inc. for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. Samtec Inc. is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Latch Lock/Eject Hooks
- Contact Length - Mating: 0.120" (3.05mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.325" (8.25mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 3.00µin (0.076µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
- Features: Keying Slot, Pick and Place
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): 1.75A
- Voltage Rating: -
Related Products
TE Connectivity AMP Connectors
1-770875-0
Harwin Inc.
M80-5200605
TE Connectivity AMP Connectors
4-102973-0-20
Preci-Dip
894-70-084-20-002101
TE Connectivity AMP Connectors
6-103735-0
TE Connectivity AMP Connectors
5-104436-4
Molex
5600200320
Molex
0026482020
Preci-Dip

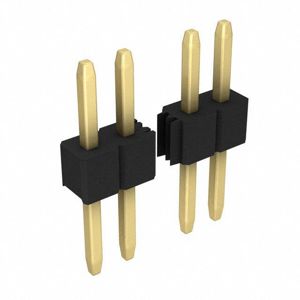

890-70-019-10-003101
