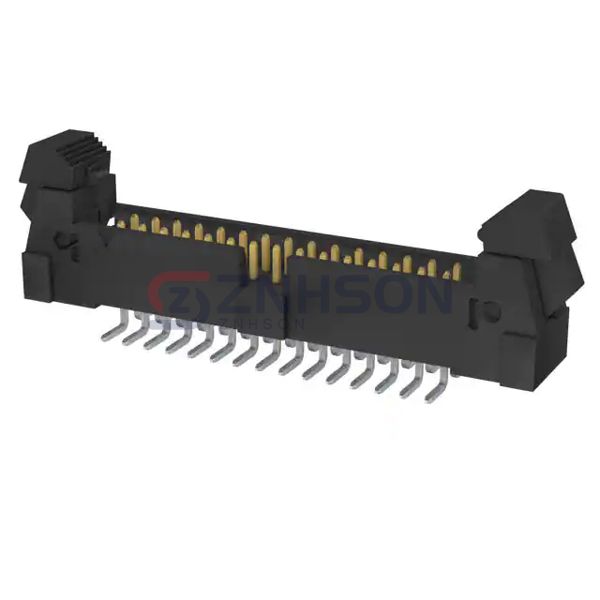

EHT-115-01-S-D-SM-P
Samtec Inc.
Samtec Inc.
CONN HEADER SMD 30POS 2MM
$17.66
Available to order
Reference Price (USD)
1+
$17.65667
500+
$17.4801033
1000+
$17.3035366
1500+
$17.1269699
2000+
$16.9504032
2500+
$16.7738365
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the EHT-115-01-S-D-SM-P rectangular connector header from Samtec Inc.. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the EHT-115-01-S-D-SM-P is perfect for automotive, industrial, and consumer electronics. Samtec Inc. ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 30
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Latch Lock/Eject Hooks
- Contact Length - Mating: 0.120" (3.05mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.370" (9.40mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Keying Slot, Pick and Place
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Mill-Max Manufacturing Corp.
850-40-009-30-001000
Samtec Inc.
FTSH-106-01-L-DV-P-TR
Samtec Inc.
TMM-149-02-L-D
Samtec Inc.
TSM-113-02-L-DH-A
TE Connectivity AMP Connectors
5499913-9
Samtec Inc.
TSM-107-01-S-DH-001
Samtec Inc.
TLW-128-06-G-D
Harwin Inc.

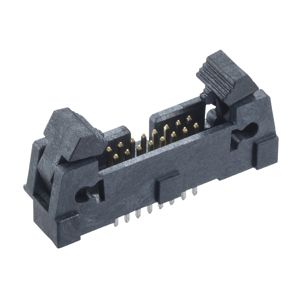

M50-3550842
Samtec Inc.

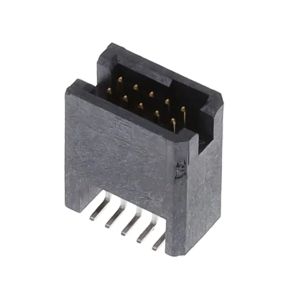

TFM-105-32-L-D
