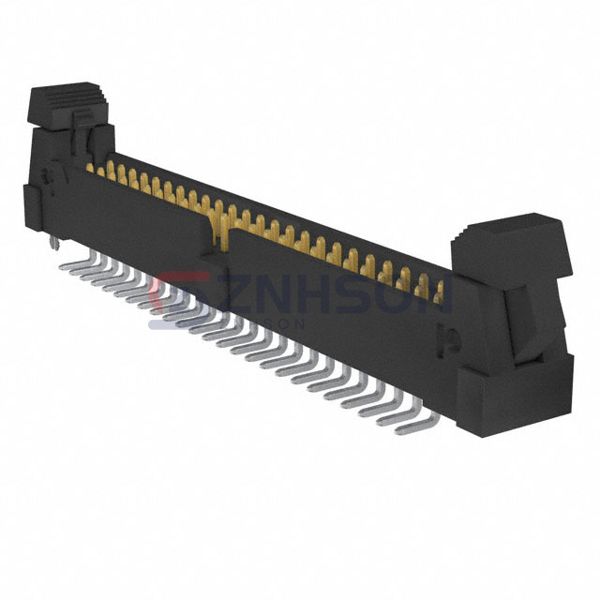

EHT-125-01-S-D-SM-SR-LC
Samtec Inc.
Samtec Inc.
CONN HEADER SMD 50POS 2MM
$33.59
Available to order
Reference Price (USD)
1+
$19.37000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the EHT-125-01-S-D-SM-SR-LC rectangular connector header by Samtec Inc.. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the EHT-125-01-S-D-SM-SR-LC ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust Samtec Inc. for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 50
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Latch Lock/Eject Hooks
- Contact Length - Mating: 0.120" (3.05mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.370" (9.40mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Board Lock, Keying Slot, Strain Relief
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Samtec Inc.
TSM-105-03-T-SH-A-P
Samtec Inc.

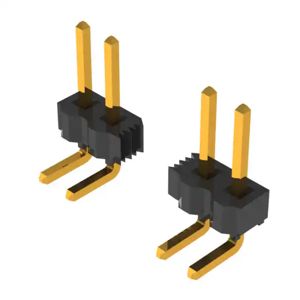

TSW-130-08-G-S-RA
Preci-Dip

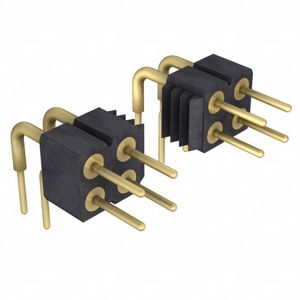

832-10-048-20-001101
Samtec Inc.
TMM-105-06-L-D-SM-TR
Amphenol ICC (FCI)

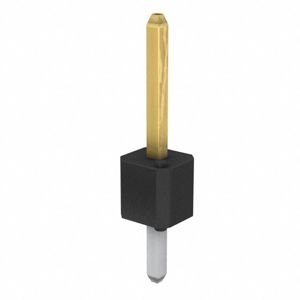

77311-118-01LF
Samtec Inc.

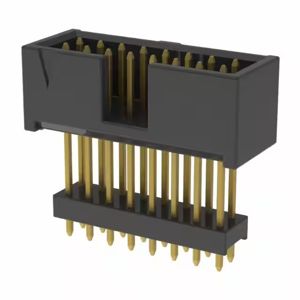

ZSS-108-03-G-D-715
Molex

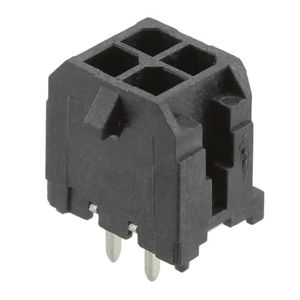

0430450428
Preci-Dip

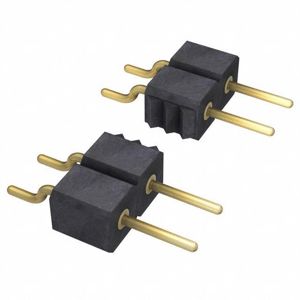

350-10-132-00-206101
Samtec Inc.

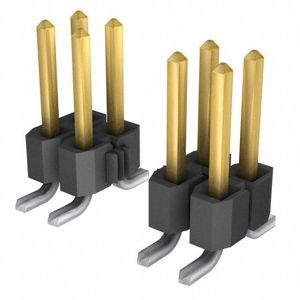

TSM-108-01-F-DV-P
