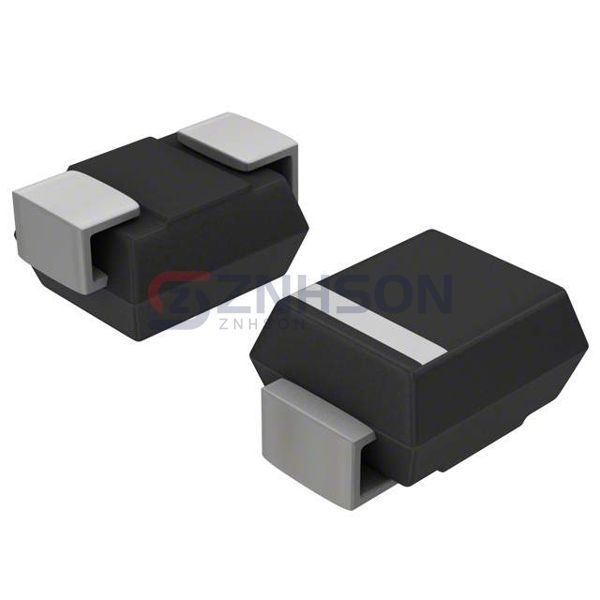

ER3D
SMC Diode Solutions
SMC Diode Solutions
SMT SUPER FAST RECTIFIER
$0.12
Available to order
Reference Price (USD)
1+
$0.12033
500+
$0.1191267
1000+
$0.1179234
1500+
$0.1167201
2000+
$0.1155168
2500+
$0.1143135
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ER3D from SMC Diode Solutions is a premium single rectifier diode that stands out in the Diodes - Rectifiers - Single segment. With excellent thermal characteristics and high reverse voltage capability, it is perfect for high-frequency applications like RF modules and wireless charging systems. This diode is also widely used in automotive lighting and HVAC controls, ensuring efficient energy conversion. SMC Diode Solutions's dedication to quality means the ER3D meets rigorous standards, providing dependable performance for both commercial and industrial applications.
Specifications
- Product Status: Active
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 200 V
- Current - Average Rectified (Io): 3A
- Voltage - Forward (Vf) (Max) @ If: 950 mV @ 3 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 35 ns
- Current - Reverse Leakage @ Vr: 5 µA @ 200 V
- Capacitance @ Vr, F: 45pF @ 4V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: DO-214AB, SMC
- Supplier Device Package: SMC (DO-214AB)
- Operating Temperature - Junction: -65°C ~ 150°C
