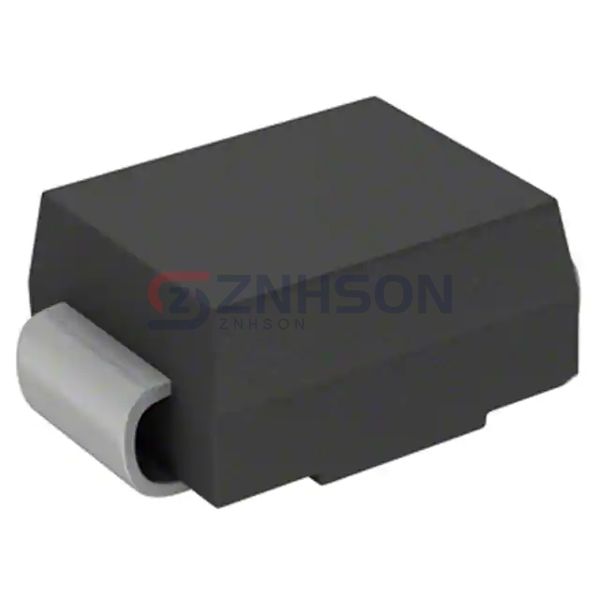

ES1B-13-F
Diodes Incorporated
Diodes Incorporated
DIODE GEN PURP 100V 1A SMA
$0.51
Available to order
Reference Price (USD)
5,000+
$0.10450
10,000+
$0.09625
25,000+
$0.09075
50,000+
$0.08800
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ES1B-13-F from Diodes Incorporated is a premium single rectifier diode that stands out in the Diodes - Rectifiers - Single segment. With excellent thermal characteristics and high reverse voltage capability, it is perfect for high-frequency applications like RF modules and wireless charging systems. This diode is also widely used in automotive lighting and HVAC controls, ensuring efficient energy conversion. Diodes Incorporated's dedication to quality means the ES1B-13-F meets rigorous standards, providing dependable performance for both commercial and industrial applications.
Specifications
- Product Status: Active
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 100 V
- Current - Average Rectified (Io): 1A
- Voltage - Forward (Vf) (Max) @ If: 920 mV @ 1 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 25 ns
- Current - Reverse Leakage @ Vr: 5 µA @ 100 V
- Capacitance @ Vr, F: 10pF @ 4V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: DO-214AC, SMA
- Supplier Device Package: SMA
- Operating Temperature - Junction: -55°C ~ 150°C
