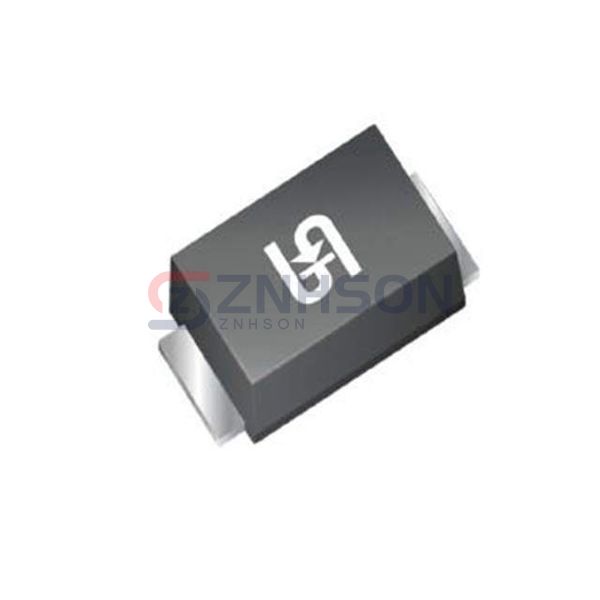

ES1DL
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
DIODE GEN PURP 200V 1A SUB SMA
$0.42
Available to order
Reference Price (USD)
1+
$0.42000
500+
$0.4158
1000+
$0.4116
1500+
$0.4074
2000+
$0.4032
2500+
$0.399
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ES1DL from Taiwan Semiconductor Corporation is a premium single rectifier diode that stands out in the Diodes - Rectifiers - Single segment. With excellent thermal characteristics and high reverse voltage capability, it is perfect for high-frequency applications like RF modules and wireless charging systems. This diode is also widely used in automotive lighting and HVAC controls, ensuring efficient energy conversion. Taiwan Semiconductor Corporation's dedication to quality means the ES1DL meets rigorous standards, providing dependable performance for both commercial and industrial applications.
Specifications
- Product Status: Active
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 200 V
- Current - Average Rectified (Io): 1A
- Voltage - Forward (Vf) (Max) @ If: 950 mV @ 1 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 35 ns
- Current - Reverse Leakage @ Vr: 5 µA @ 200 V
- Capacitance @ Vr, F: 10pF @ 4V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: DO-219AB
- Supplier Device Package: Sub SMA
- Operating Temperature - Junction: -55°C ~ 150°C
