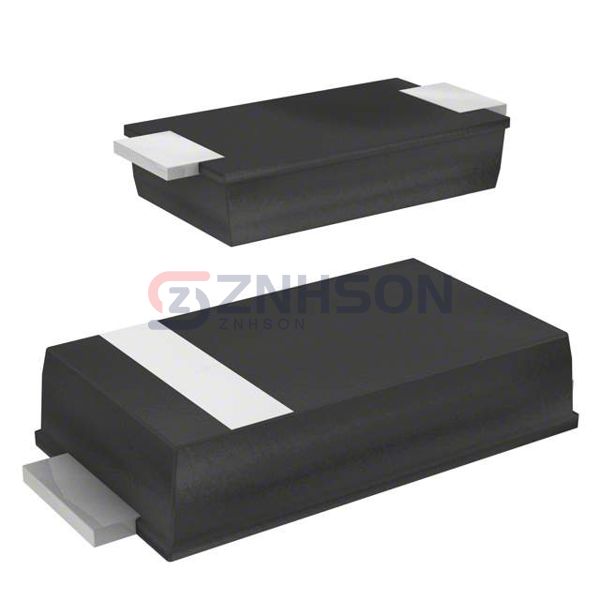

ES1JAF
onsemi
onsemi
DIODE GEN PURP 600V 1A DO214AD
$0.61
Available to order
Reference Price (USD)
10,000+
$0.09394
30,000+
$0.09089
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the ES1JAF single rectifier diode by onsemi, a key component in the Diodes - Rectifiers - Single classification. This diode excels in providing stable and efficient rectification for circuits requiring precise voltage control. With its high surge current capability and low leakage, it is perfect for use in power management systems, LED drivers, and battery chargers. The ES1JAF is widely utilized in telecommunications, renewable energy systems, and medical devices, ensuring reliable operation under varying load conditions. Choose onsemi's ES1JAF for unmatched quality and performance in discrete semiconductor solutions.
Specifications
- Product Status: Active
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 600 V
- Current - Average Rectified (Io): 1A
- Voltage - Forward (Vf) (Max) @ If: 1.7 V @ 1 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 34 ns
- Current - Reverse Leakage @ Vr: 1 µA @ 600 V
- Capacitance @ Vr, F: 15pF @ 4V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: DO-214AD, SMAF
- Supplier Device Package: DO-214AD (SMAF)
- Operating Temperature - Junction: -55°C ~ 150°C
