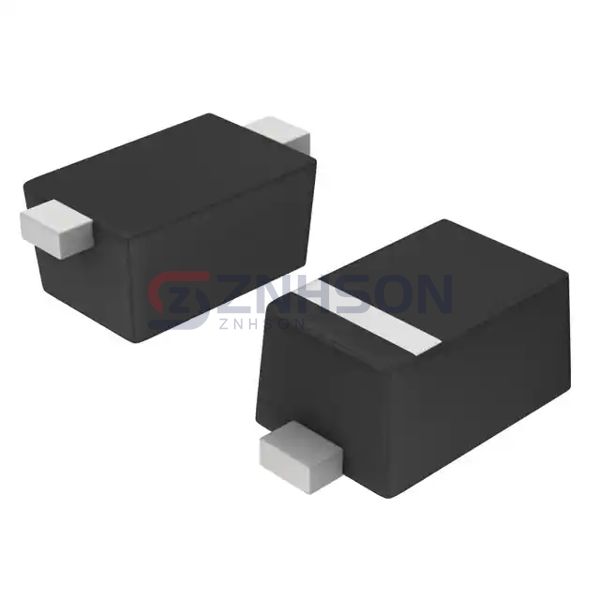

ESD5Z12T1G
onsemi
onsemi
TVS DIODE 12VWM 25VC SOD523
$0.28
Available to order
Reference Price (USD)
3,000+
$0.04899
6,000+
$0.04282
15,000+
$0.03665
30,000+
$0.03460
75,000+
$0.03254
150,000+
$0.02842
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the ESD5Z12T1G TVS diode from onsemi, a key component for effective circuit protection. This diode features low clamping voltage and high energy dissipation, making it suitable for sensitive applications. TVS diodes are widely employed in automotive electronics, industrial controls, and telecommunications. They provide critical protection against ESD and other transient threats. For example, the ESD5Z12T1G can defend automotive infotainment systems from voltage spikes. onsemi is your trusted source for high-quality TVS diodes that ensure device longevity and performance.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: 1
- Bidirectional Channels: -
- Voltage - Reverse Standoff (Typ): 12V (Max)
- Voltage - Breakdown (Min): 14.1V
- Voltage - Clamping (Max) @ Ipp: 25V
- Current - Peak Pulse (10/1000µs): 9.6A (8/20µs)
- Power - Peak Pulse: 240W
- Power Line Protection: No
- Applications: General Purpose
- Capacitance @ Frequency: 55pF @ 1MHz
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: SC-79, SOD-523
- Supplier Device Package: SOD-523
