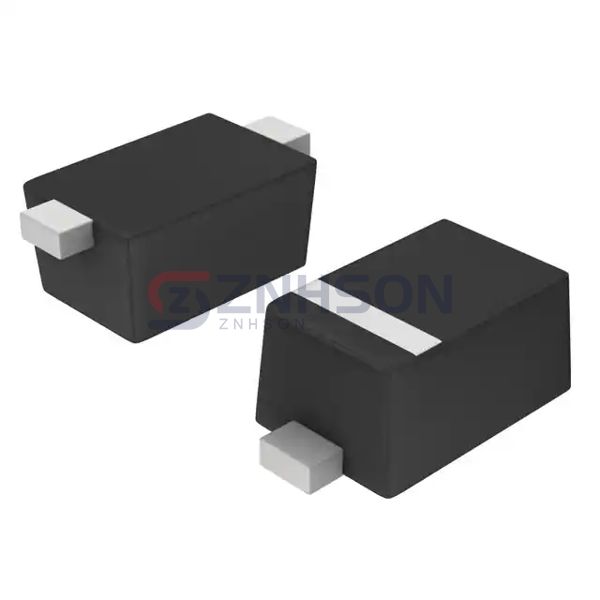

ESD5Z12T5G
onsemi
onsemi
TVS DIODE 12VWM 25VC SOD523
$0.25
Available to order
Reference Price (USD)
8,000+
$0.04402
16,000+
$0.03769
24,000+
$0.03558
56,000+
$0.03347
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ESD5Z12T5G TVS diode by onsemi offers unmatched protection against voltage transients. With its robust design and high surge current capacity, this diode is ideal for harsh environments. TVS diodes are commonly used in power management, RF systems, and LED lighting. They help prevent damage caused by sudden voltage surges, such as those from lightning or power fluctuations. For instance, the ESD5Z12T5G can safeguard solar inverters from overvoltage events. Choose onsemi for reliable and efficient circuit protection solutions.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: 1
- Bidirectional Channels: -
- Voltage - Reverse Standoff (Typ): 12V (Max)
- Voltage - Breakdown (Min): 14.1V
- Voltage - Clamping (Max) @ Ipp: 25V
- Current - Peak Pulse (10/1000µs): 9.6A (8/20µs)
- Power - Peak Pulse: 240W
- Power Line Protection: No
- Applications: General Purpose
- Capacitance @ Frequency: 55pF @ 1MHz
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: SC-79, SOD-523
- Supplier Device Package: SOD-523
