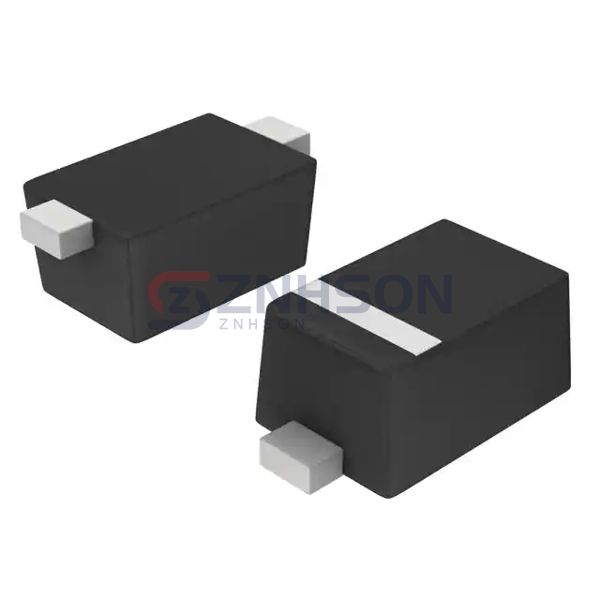

ESD5Z2.5T5G
onsemi
onsemi
TVS DIODE 2.5VWM 10.9VC SOD523
$0.19
Available to order
Reference Price (USD)
8,000+
$0.02881
16,000+
$0.02519
24,000+
$0.02277
56,000+
$0.02036
200,000+
$0.01714
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Protect your electronics with the ESD5Z2.5T5G TVS diode by onsemi. This diode offers exceptional clamping voltage and low leakage current, making it ideal for precision circuit protection. TVS diodes like the ESD5Z2.5T5G are critical in applications such as power supplies, USB ports, and communication interfaces. They effectively absorb transient energy, preventing damage to connected devices. For example, the ESD5Z2.5T5G can shield HDMI ports in consumer electronics from voltage surges. Trust onsemi's expertise in delivering high-quality TVS diodes for your protection needs.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: 1
- Bidirectional Channels: -
- Voltage - Reverse Standoff (Typ): 2.5V (Max)
- Voltage - Breakdown (Min): 4V
- Voltage - Clamping (Max) @ Ipp: 10.9V
- Current - Peak Pulse (10/1000µs): 11A (8/20µs)
- Power - Peak Pulse: 120W
- Power Line Protection: No
- Applications: General Purpose
- Capacitance @ Frequency: 145pF @ 1MHz
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: SC-79, SOD-523
- Supplier Device Package: SOD-523
