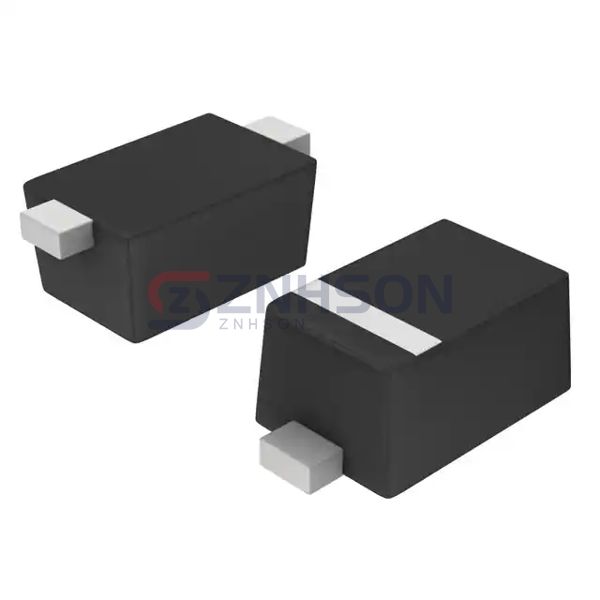

ESD5Z3.3T1G
onsemi
onsemi
TVS DIODE 3.3VWM 14.1VC SOD523
$0.26
Available to order
Reference Price (USD)
3,000+
$0.05085
6,000+
$0.04422
15,000+
$0.03759
30,000+
$0.03538
75,000+
$0.03317
150,000+
$0.02874
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ESD5Z3.3T1G by onsemi is a top-tier TVS diode designed for advanced circuit protection. Featuring ultra-low capacitance and high energy absorption, this diode is perfect for high-speed data lines and sensitive electronics. TVS diodes play a vital role in protecting equipment from lightning strikes, inductive load switching, and other transient threats. Common applications include network equipment, medical devices, and automotive systems. For instance, the ESD5Z3.3T1G can secure CAN bus lines in vehicles against voltage spikes. Rely on onsemi for cutting-edge TVS diode solutions.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: 1
- Bidirectional Channels: -
- Voltage - Reverse Standoff (Typ): 3.3V (Max)
- Voltage - Breakdown (Min): 5V
- Voltage - Clamping (Max) @ Ipp: 14.1V
- Current - Peak Pulse (10/1000µs): 11.2A (8/20µs)
- Power - Peak Pulse: 158W
- Power Line Protection: No
- Applications: General Purpose
- Capacitance @ Frequency: 105pF @ 1MHz
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: SC-79, SOD-523
- Supplier Device Package: SOD-523
