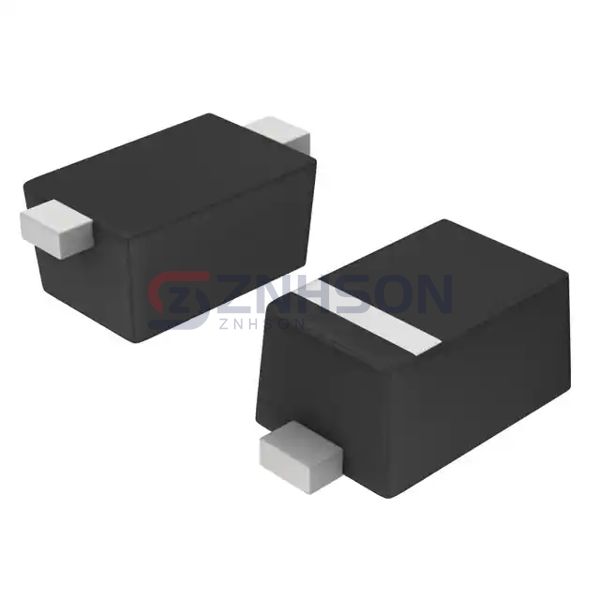

ESD5Z5.0T1G
onsemi
onsemi
TVS DIODE 5VWM 18.6VC SOD523
$0.27
Available to order
Reference Price (USD)
3,000+
$0.05035
6,000+
$0.04402
15,000+
$0.03769
30,000+
$0.03558
75,000+
$0.03347
150,000+
$0.02995
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the ESD5Z5.0T1G TVS diode from onsemi, a key component for effective circuit protection. This diode features low clamping voltage and high energy dissipation, making it suitable for sensitive applications. TVS diodes are widely employed in automotive electronics, industrial controls, and telecommunications. They provide critical protection against ESD and other transient threats. For example, the ESD5Z5.0T1G can defend automotive infotainment systems from voltage spikes. onsemi is your trusted source for high-quality TVS diodes that ensure device longevity and performance.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: 1
- Bidirectional Channels: -
- Voltage - Reverse Standoff (Typ): 5V (Max)
- Voltage - Breakdown (Min): 6.2V
- Voltage - Clamping (Max) @ Ipp: 18.6V
- Current - Peak Pulse (10/1000µs): 9.4A (8/20µs)
- Power - Peak Pulse: 174W
- Power Line Protection: No
- Applications: General Purpose
- Capacitance @ Frequency: 80pF @ 1MHz
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: SC-79, SOD-523
- Supplier Device Package: SOD-523
