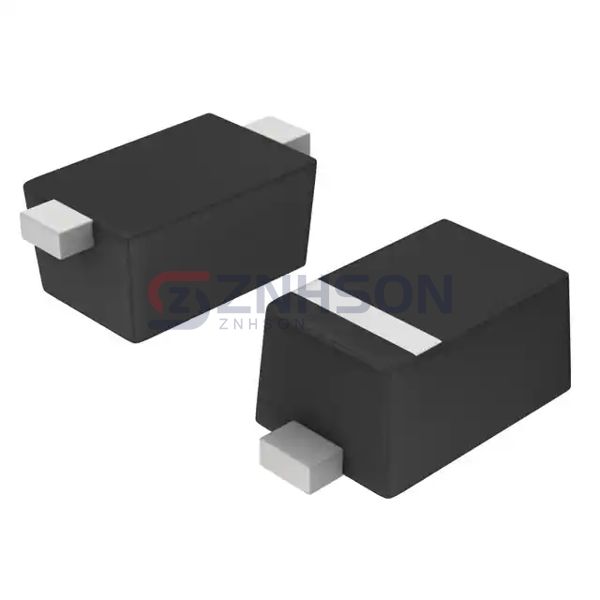

ESD5Z5.0T5G
onsemi
onsemi
TVS DIODE 5VWM 18.6VC SOD523
$0.26
Available to order
Reference Price (USD)
8,000+
$0.04095
16,000+
$0.03506
24,000+
$0.03310
56,000+
$0.03114
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ESD5Z5.0T5G by onsemi is a top-tier TVS diode designed for advanced circuit protection. Featuring ultra-low capacitance and high energy absorption, this diode is perfect for high-speed data lines and sensitive electronics. TVS diodes play a vital role in protecting equipment from lightning strikes, inductive load switching, and other transient threats. Common applications include network equipment, medical devices, and automotive systems. For instance, the ESD5Z5.0T5G can secure CAN bus lines in vehicles against voltage spikes. Rely on onsemi for cutting-edge TVS diode solutions.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: 1
- Bidirectional Channels: -
- Voltage - Reverse Standoff (Typ): 5V (Max)
- Voltage - Breakdown (Min): 6.2V
- Voltage - Clamping (Max) @ Ipp: 18.6V
- Current - Peak Pulse (10/1000µs): 9.4A (8/20µs)
- Power - Peak Pulse: 174W
- Power Line Protection: No
- Applications: General Purpose
- Capacitance @ Frequency: 80pF @ 1MHz
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: SC-79, SOD-523
- Supplier Device Package: SOD-523
