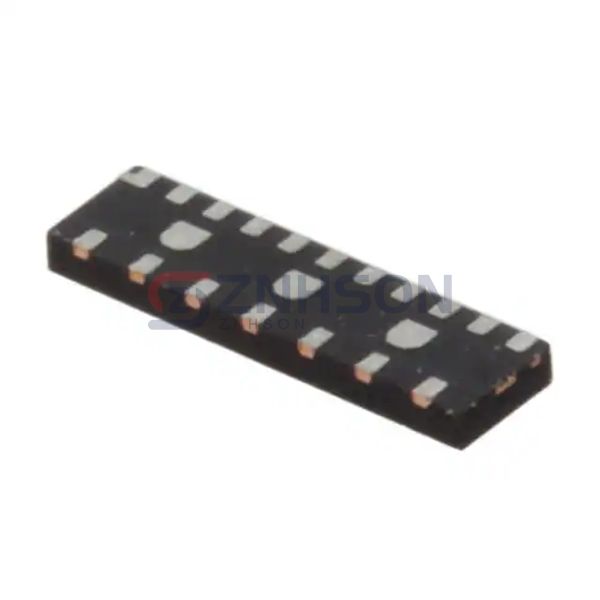

ESD8040MUTAG
onsemi
onsemi
TVS DIODE 3.3VWM 12VC 18UDFN
$1.95
Available to order
Reference Price (USD)
3,000+
$0.61585
6,000+
$0.58505
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ESD8040MUTAG by onsemi is a top-tier TVS diode designed for advanced circuit protection. Featuring ultra-low capacitance and high energy absorption, this diode is perfect for high-speed data lines and sensitive electronics. TVS diodes play a vital role in protecting equipment from lightning strikes, inductive load switching, and other transient threats. Common applications include network equipment, medical devices, and automotive systems. For instance, the ESD8040MUTAG can secure CAN bus lines in vehicles against voltage spikes. Rely on onsemi for cutting-edge TVS diode solutions.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: 14
- Bidirectional Channels: -
- Voltage - Reverse Standoff (Typ): 3.3V (Max)
- Voltage - Breakdown (Min): 5.5V
- Voltage - Clamping (Max) @ Ipp: 12V (Typ)
- Current - Peak Pulse (10/1000µs): 16A (100ns)
- Power - Peak Pulse: -
- Power Line Protection: No
- Applications: HDMI
- Capacitance @ Frequency: 0.3pF @ 1MHz
- Operating Temperature: -55°C ~ 125°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 18-UFDFN Exposed Pad
- Supplier Device Package: 18-UDFN (5.5x1.5)
