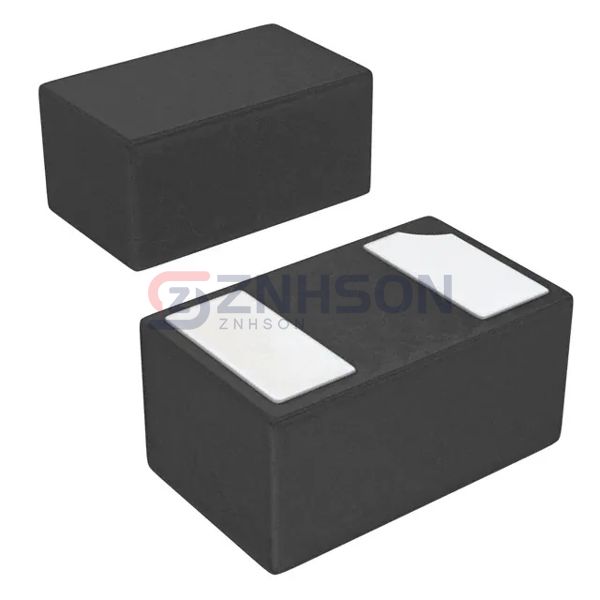

ESDA15P60-1U1M
STMicroelectronics
STMicroelectronics
TVS DIODE 13.2VWM 22.7VC 1610
$0.45
Available to order
Reference Price (USD)
8,000+
$0.13995
16,000+
$0.13186
24,000+
$0.12243
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ESDA15P60-1U1M TVS diode by STMicroelectronics offers unmatched protection against voltage transients. With its robust design and high surge current capacity, this diode is ideal for harsh environments. TVS diodes are commonly used in power management, RF systems, and LED lighting. They help prevent damage caused by sudden voltage surges, such as those from lightning or power fluctuations. For instance, the ESDA15P60-1U1M can safeguard solar inverters from overvoltage events. Choose STMicroelectronics for reliable and efficient circuit protection solutions.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: 1
- Bidirectional Channels: -
- Voltage - Reverse Standoff (Typ): 13.2V (Max)
- Voltage - Breakdown (Min): 13.6V
- Voltage - Clamping (Max) @ Ipp: 22.7V
- Current - Peak Pulse (10/1000µs): 57A (8/20µs)
- Power - Peak Pulse: 1200W (1.2kW)
- Power Line Protection: No
- Applications: General Purpose
- Capacitance @ Frequency: -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 2-UDFN
- Supplier Device Package: 1610
