ESDA24P140-1U3M
STMicroelectronics
STMicroelectronics
TVS DIODE 22VWM 29.5VC 3QFN
$0.60
Available to order
Reference Price (USD)
5,000+
$0.16885
10,000+
$0.15850
25,000+
$0.15677
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ESDA24P140-1U3M by STMicroelectronics is a top-tier TVS diode designed for advanced circuit protection. Featuring ultra-low capacitance and high energy absorption, this diode is perfect for high-speed data lines and sensitive electronics. TVS diodes play a vital role in protecting equipment from lightning strikes, inductive load switching, and other transient threats. Common applications include network equipment, medical devices, and automotive systems. For instance, the ESDA24P140-1U3M can secure CAN bus lines in vehicles against voltage spikes. Rely on STMicroelectronics for cutting-edge TVS diode solutions.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: 2
- Bidirectional Channels: -
- Voltage - Reverse Standoff (Typ): 22V (Max)
- Voltage - Breakdown (Min): 22.7V
- Voltage - Clamping (Max) @ Ipp: 29.5V
- Current - Peak Pulse (10/1000µs): 10A
- Power - Peak Pulse: 330W
- Power Line Protection: No
- Applications: General Purpose
- Capacitance @ Frequency: -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 3-UDFN Exposed Pad
- Supplier Device Package: 3-QFN (2x2)
Related Products
Comchip Technology
P6KE440CA-HF
Eaton - Electronics Division
SMCJE33AH
YAGEO
5KP26A/B
Littelfuse Inc.
5KP36CA-B
Central Semiconductor Corp
1SMC70CA TR13 PBFREE
onsemi
ESD7016MUTAG
MDE Semiconductor Inc
MART100KP58CA
MDE Semiconductor Inc
MRT100KP132A
Vishay General Semiconductor - Diodes Division

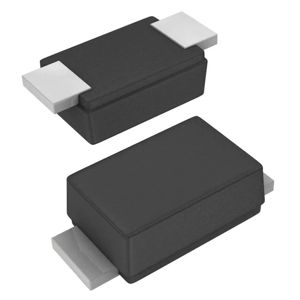

VTVS21GSMF-M3-08
