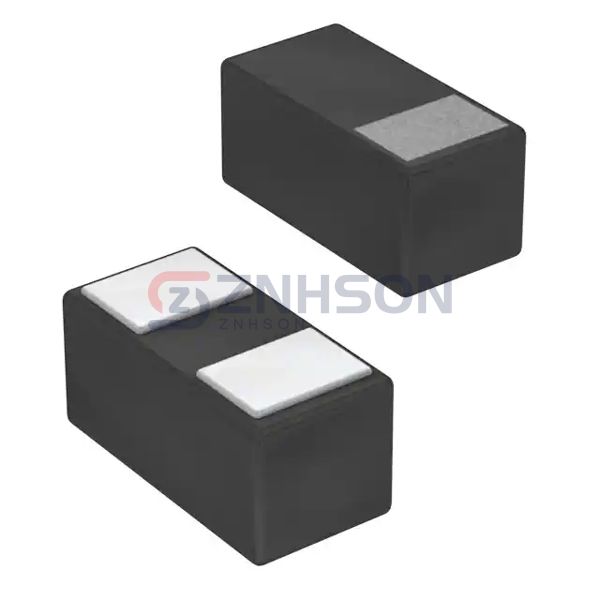

ESDALC20-1BF4
STMicroelectronics
STMicroelectronics
TVS DIODE 20VWM 37VC 0201
$0.39
Available to order
Reference Price (USD)
15,000+
$0.05333
30,000+
$0.05049
75,000+
$0.04766
105,000+
$0.04293
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Protect your electronics with the ESDALC20-1BF4 TVS diode by STMicroelectronics. This diode offers exceptional clamping voltage and low leakage current, making it ideal for precision circuit protection. TVS diodes like the ESDALC20-1BF4 are critical in applications such as power supplies, USB ports, and communication interfaces. They effectively absorb transient energy, preventing damage to connected devices. For example, the ESDALC20-1BF4 can shield HDMI ports in consumer electronics from voltage surges. Trust STMicroelectronics's expertise in delivering high-quality TVS diodes for your protection needs.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: -
- Bidirectional Channels: 1
- Voltage - Reverse Standoff (Typ): 20V
- Voltage - Breakdown (Min): 22V
- Voltage - Clamping (Max) @ Ipp: 37V
- Current - Peak Pulse (10/1000µs): 2.4A (8/20µs)
- Power - Peak Pulse: 90W
- Power Line Protection: No
- Applications: General Purpose
- Capacitance @ Frequency: 10.5pF @ 1MHz
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 0201 (0603 Metric)
- Supplier Device Package: 0201
Related Products
STMicroelectronics
SMAJ13CA-TR
Eaton - Electronics Division
STS321033B401
Vishay General Semiconductor - Diodes Division
SMC5K64A-M3/H
STMicroelectronics

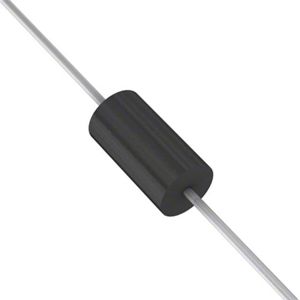

BZW06-33B
Vishay General Semiconductor - Diodes Division
SMBJ64CA-E3/52
Taiwan Semiconductor Corporation
BZW04-58H
Taiwan Semiconductor Corporation

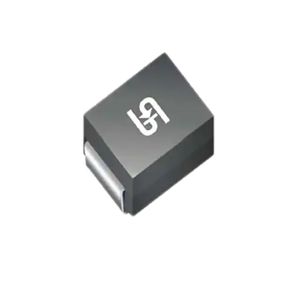

SMCJ28A R7G
