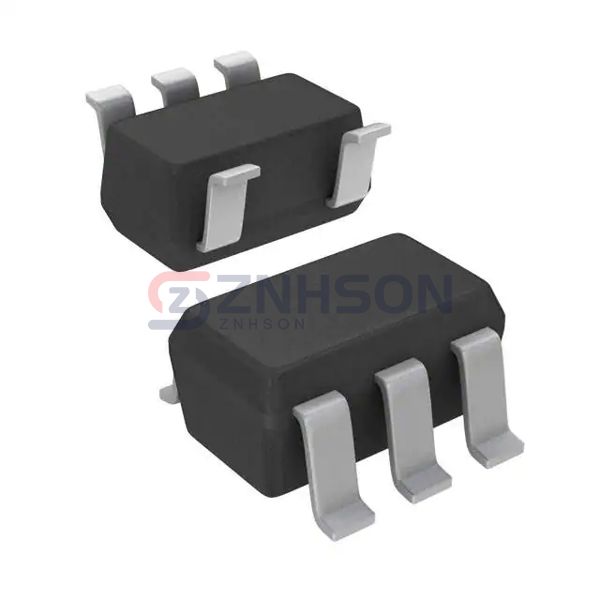

ESDS302DBVR
Texas Instruments
Texas Instruments
TVS DIODE 3.6VWM 3VC SOT23-5
$0.56
Available to order
Reference Price (USD)
3,000+
$0.24846
6,000+
$0.23187
15,000+
$0.22910
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the ESDS302DBVR TVS diode from Texas Instruments, a key component for effective circuit protection. This diode features low clamping voltage and high energy dissipation, making it suitable for sensitive applications. TVS diodes are widely employed in automotive electronics, industrial controls, and telecommunications. They provide critical protection against ESD and other transient threats. For example, the ESDS302DBVR can defend automotive infotainment systems from voltage spikes. Texas Instruments is your trusted source for high-quality TVS diodes that ensure device longevity and performance.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: -
- Bidirectional Channels: 2
- Voltage - Reverse Standoff (Typ): 3.6V (Max)
- Voltage - Breakdown (Min): 4.5V
- Voltage - Clamping (Max) @ Ipp: 3V (Typ)
- Current - Peak Pulse (10/1000µs): 12A (8/20µs)
- Power - Peak Pulse: 85W
- Power Line Protection: No
- Applications: General Purpose
- Capacitance @ Frequency: 2.3pF @ 1MHz
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: SC-74A, SOT-753
- Supplier Device Package: SOT-23-5
