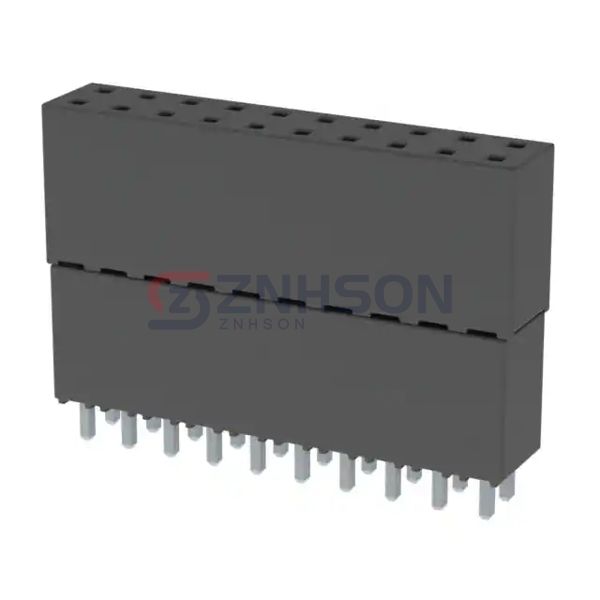

ESQ-110-33-T-D
Samtec Inc.
Samtec Inc.
CONN SOCKET 20POS 0.1 TIN PCB
$4.38
Available to order
Reference Price (USD)
1+
$2.89000
10+
$2.39500
100+
$1.79640
500+
$1.49700
1,000+
$1.32734
5,000+
$1.24750
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ESQ-110-33-T-D Samtec Inc. Rectangular Connectors - Headers, Receptacles, and Female Sockets offer superior connectivity solutions for modern electronics. Designed with versatility in mind, these connectors support high-speed data transfer and power delivery. Their compact design and rugged build make them suitable for aerospace, military, and IoT applications. Whether you need board-to-board, cable-to-board, or wire-to-wire connections, Samtec Inc. provides reliable options. Examples include avionics systems, defense equipment, and smart home devices.
Specifications
- Product Status: Active
- Connector Type: Elevated Socket
- Contact Type: Forked
- Style: Board to Board
- Number of Positions: 20
- Number of Positions Loaded: All
- Pitch - Mating: 0.100" (2.54mm)
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Insulation Color: Black
- Insulation Height: 0.635" (16.13mm)
- Contact Length - Post: 0.090" (2.29mm)
- Operating Temperature: -55°C ~ 105°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Tin
- Mated Stacking Heights: -
- Ingress Protection: -
- Features: -
- Current Rating (Amps): 5.7A per Contact
- Voltage Rating: 550VAC
