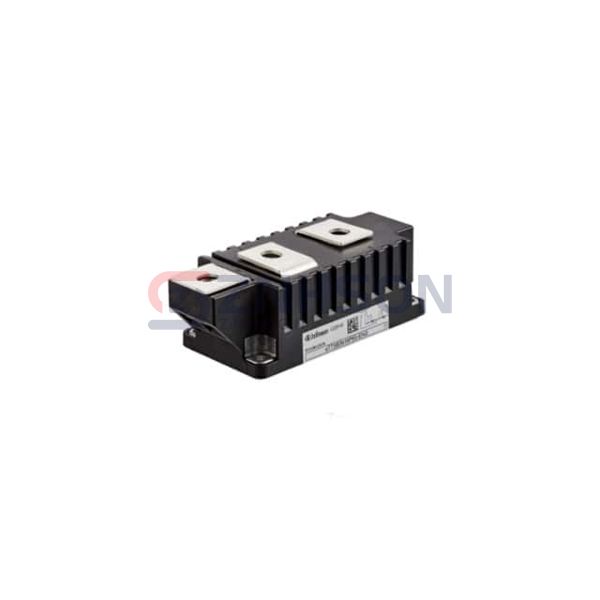

ETD420N22P60HPSA1
Infineon Technologies
Infineon Technologies
THYR / DIODE MODULE DK
$169.17
Available to order
Reference Price (USD)
1+
$180.17000
10+
$172.55700
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ETD420N22P60HPSA1 Thyristors - SCRs - Modules by Infineon Technologies are engineered for superior power control and efficiency. These discrete semiconductor products are widely used in applications requiring high surge current handling and fast switching, such as laser power supplies and plasma cutting equipment. With advanced thermal management and robust construction, these modules deliver reliable performance in extreme conditions. Trust Infineon Technologies for semiconductor solutions that combine cutting-edge technology with unmatched durability, ensuring your systems run smoothly and efficiently.
Specifications
- Product Status: Obsolete
- Structure: Series Connection - SCR/Diode
- Number of SCRs, Diodes: 1 SCR, 1 Diode
- Voltage - Off State: 2.2 kV
- Current - On State (It (AV)) (Max): 427 A
- Current - On State (It (RMS)) (Max): 700 A
- Voltage - Gate Trigger (Vgt) (Max): 2.2 V
- Current - Gate Trigger (Igt) (Max): 250 mA
- Current - Non Rep. Surge 50, 60Hz (Itsm): 13400A @ 50Hz
- Current - Hold (Ih) (Max): 300 mA
- Operating Temperature: -40°C ~ 135°C (TC)
- Mounting Type: Chassis Mount
- Package / Case: Module
