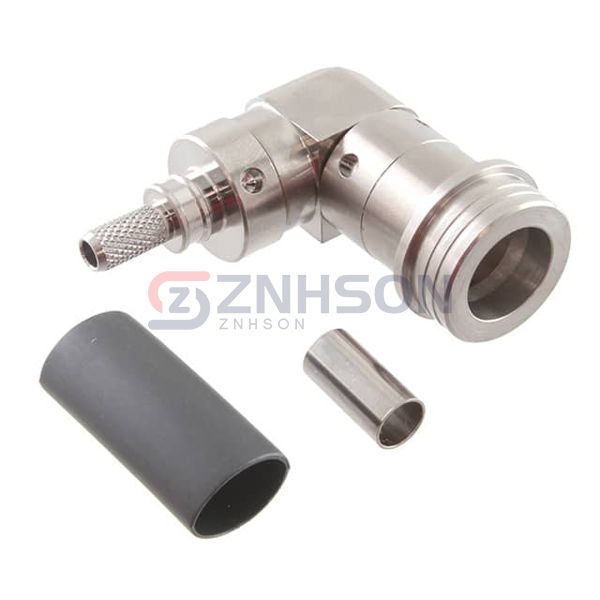

EZ-195/200-QNM-RA-X
Amphenol Times Microwave Systems
Amphenol Times Microwave Systems
QN-MALE (PLUG) RIGHT ANGLE, CRIM
$43.96
Available to order
Reference Price (USD)
1+
$43.96000
500+
$43.5204
1000+
$43.0808
1500+
$42.6412
2000+
$42.2016
2500+
$41.762
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The EZ-195/200-QNM-RA-X from Amphenol Times Microwave Systems represents the pinnacle of Coaxial Connectors (RF) innovation. This series incorporates temperature-compensated designs that maintain stable electrical characteristics across extreme thermal cycles. Featuring industry-leading return loss (>20dB typical) and insertion loss (<0.1dB per connection), these connectors are ideal for sensitive measurement applications. The product family includes field-installable, panel-mount, and PCB receptacle variants. Primary application areas: Military radar systems Quantum cascade lasers EMC test chambers Cellular base station radios. The EZ-195/200-QNM-RA-X variant offers unique angled cable exits that simplify routing in space-constrained equipment enclosures while maintaining impedance control.
Specifications
- Product Status: Active
- Connector Style: QN
- Connector Type: Jack, Female Socket
- Contact Termination: Crimp
- Shield Termination: Crimp
- Impedance: 50Ohm
- Mounting Type: Free Hanging (In-Line)
- Mounting Feature: -
- Cable Group: LMR-195, LMR-200
- Fastening Type: Snap-On
- Frequency - Max: 6 GHz
- Number of Ports: 1
- Features: -
- Housing Color: Silver
- Ingress Protection: -
- Center Contact Material: Beryllium Copper
