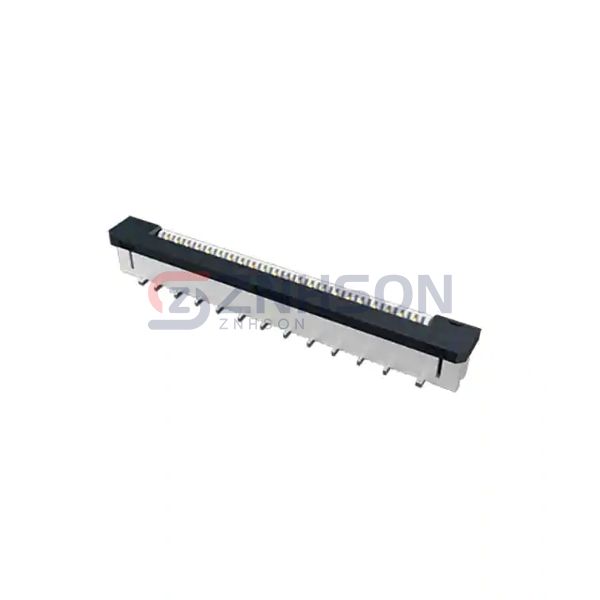

F514-1A7H1-11030

Amphenol ICC (FCI)

Manufacturer

Amphenol ICC (FCI)

Description:

FLEX CONNECTOR, 1.00MM PITCH, HE

Datasheet:

F514-1A7H1-11030 Datasheet

$0.84

Available to order

Reference Price (USD)

$0.84000

500+

$0.8316

1000+

$0.8232

1500+

$0.8148

2000+

$0.8064

2500+

$0.798

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The F514-1A7H1-11030 FFC/FPC Connectors by Amphenol ICC (FCI) redefine compact and reliable interconnects for advanced electronics. Engineered with a focus on miniaturization and high-speed data transfer, these connectors are essential for modern PCB designs. Key benefits include reduced crosstalk, enhanced mechanical stability, and broad temperature tolerance (-40 C to +105 C). From smart home systems to aerospace instrumentation, the F514-1A7H1-11030 delivers consistent performance. Amphenol ICC (FCI)'s innovative design prioritizes user-friendly features like tool-less locking mechanisms. Select F514-1A7H1-11030 for a connector that bridges innovation and practicality in your applications.

Specifications

Product Status: Active
Flat Flex Type: FFC, FPC
Mounting Type: Surface Mount
Connector/Contact Type: Contacts, Vertical - 1 Sided
Number of Positions: 30
Pitch: 0.039" (1.00mm)
Termination: Solder
FFC, FCB Thickness: 0.30mm, 0.33mm
Height Above Board: 0.167" (4.25mm)
Locking Feature: Slide Lock
Cable End Type: Straight, Tapered
Contact Material: Phosphor Bronze
Contact Finish: Gold
Housing Material: Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material: Polyamide (PA9T), Nylon 9T, Glass Filled, Halogen Free
Features: Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating: 50V
Operating Temperature: -40°C ~ 105°C
Material Flammability Rating: UL94 V-0
