FAN2560UC13X

Fairchild Semiconductor

Manufacturer

Fairchild Semiconductor

Description:

IC REG LINEAR 1.3V 350MA 5WLCSP

Datasheet:

FAN2560UC13X Datasheet

$0.52

Available to order

Reference Price (USD)

$0.52000

500+

$0.5148

1000+

$0.5096

1500+

$0.5044

2000+

$0.4992

2500+

$0.494

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The FAN2560UC13X from Fairchild Semiconductor is a high-performance linear voltage regulator IC designed for precision power management applications. As part of our PMIC - Voltage Regulators - Linear collection, this component offers exceptional voltage regulation with low dropout characteristics. Featuring thermal shutdown protection and current limiting, this IC maintains stable output voltage even under varying load conditions. These linear regulators are ideal for noise-sensitive applications requiring clean power delivery, such as medical devices, audio equipment, and precision measurement instruments. Typical implementations include power conditioning for microcontroller systems, battery-powered devices, and as post-regulators for switching power supplies.

Specifications

Product Status: Obsolete
Output Configuration: Positive
Output Type: Fixed
Number of Regulators: 1
Voltage - Input (Max): 5.5V
Voltage - Output (Min/Fixed): 1.3V
Voltage - Output (Max): -
Voltage Dropout (Max): 0.2V @ 350mA
Current - Output: 350mA
Current - Quiescent (Iq): 11 µA
Current - Supply (Max): 70 µA
PSRR: 50dB ~ 60dB (10Hz ~ 10kHz)
Control Features: Enable
Protection Features: Over Temperature, Short Circuit, Soft Start, Under Voltage Lockout (UVLO)
Operating Temperature: -40°C ~ 85°C
Mounting Type: Surface Mount

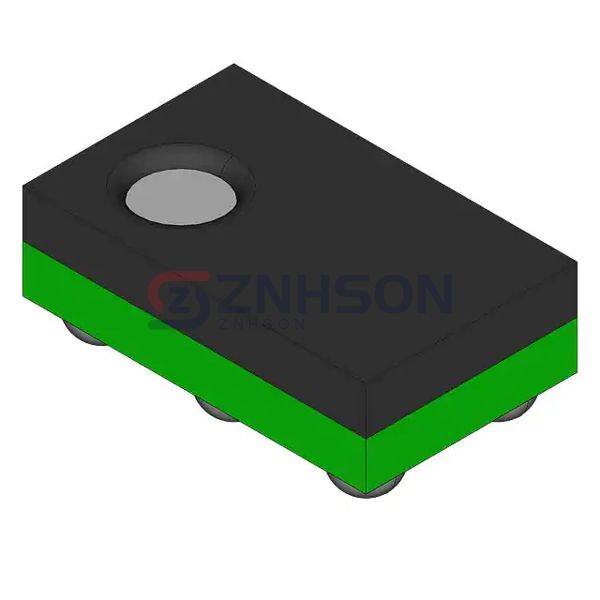

Package / Case: 5-UFBGA, WLCSP
Supplier Device Package: 5-WLCSP (0.96x1.33)
