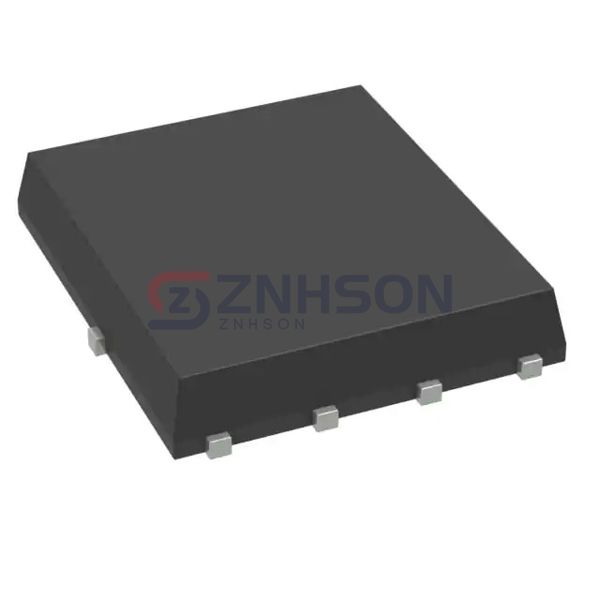

FDMS7570S
onsemi
onsemi
MOSFET N-CH 25V 28A/49A 8PQFN
$1.17
Available to order
Reference Price (USD)
3,000+
$0.53700
6,000+
$0.51015
15,000+
$0.49097
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The FDMS7570S from onsemi sets new standards in the Transistors - FETs, MOSFETs - Single market. This Discrete Semiconductor Product delivers exceptional performance in switching regulators, class D amplifiers, and power management ICs. Featuring advanced silicon technology and robust packaging, it's built to withstand rigorous operating conditions. When quality matters, professionals turn to onsemi's FDMS7570S for their critical applications.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 25 V
- Current - Continuous Drain (Id) @ 25°C: 28A (Ta), 49A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 1.95mOhm @ 28A, 10V
- Vgs(th) (Max) @ Id: 3V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 69 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 4515 pF @ 13 V
- FET Feature: -
- Power Dissipation (Max): 2.5W (Ta), 83W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-PQFN (5x6)
- Package / Case: 8-PowerTDFN
