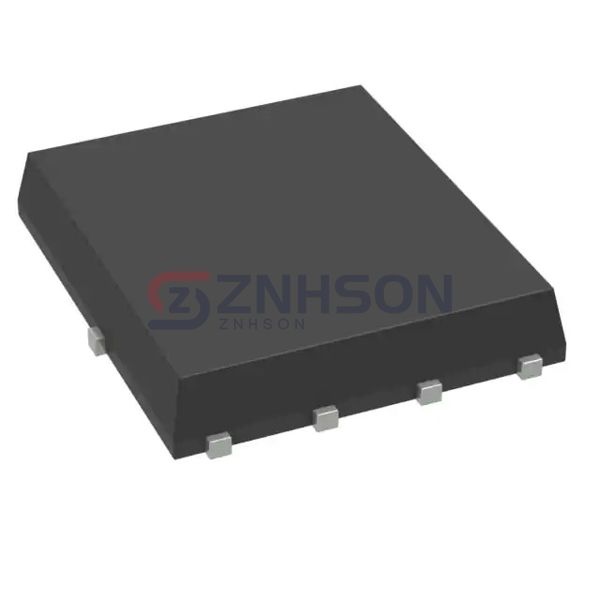

FDMS7682
onsemi
onsemi
MOSFET N-CH 30V 16A/22A 8PQFN
$0.79
Available to order
Reference Price (USD)
3,000+
$0.25528
6,000+
$0.23861
15,000+
$0.23028
30,000+
$0.22574
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The FDMS7682 single MOSFET from onsemi is a game-changer in power electronics. As part of the Discrete Semiconductor Products family, it offers unparalleled efficiency in energy conversion and management. Key applications include uninterruptible power supplies (UPS), welding equipment, and industrial motor drives. With features like high temperature operation and ESD protection, the FDMS7682 is a must-have in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 16A (Ta), 22A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 6.3mOhm @ 14A, 10V
- Vgs(th) (Max) @ Id: 3V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 30 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 1885 pF @ 15 V
- FET Feature: -
- Power Dissipation (Max): 2.5W (Ta), 33W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-PQFN (5x6)
- Package / Case: 8-PowerTDFN
