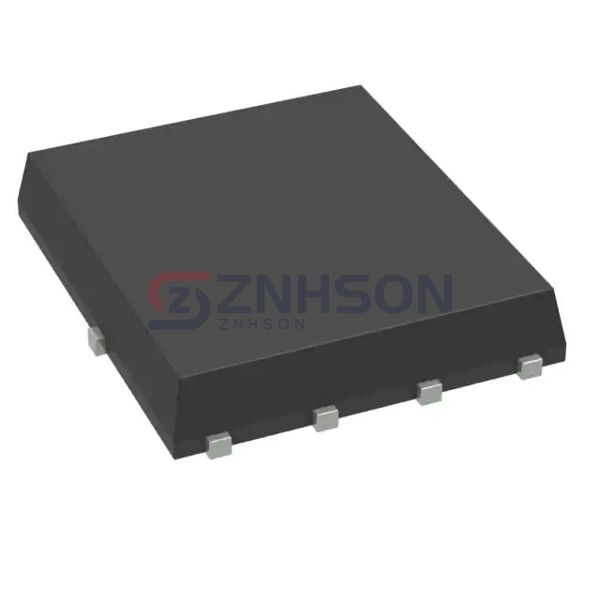

FDMS7698
onsemi
onsemi
MOSFET N-CH 30V 13.5A/22A 8PQFN
$0.73
Available to order
Reference Price (USD)
3,000+
$0.23550
6,000+
$0.22107
15,000+
$0.20664
30,000+
$0.19654
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your power electronics with the FDMS7698 single MOSFET from onsemi. As a key player in the Discrete Semiconductor Products market, this component delivers high voltage tolerance and minimal power loss. Ideal for applications like solar inverters, electric vehicles, and robotics, the FDMS7698 combines cutting-edge technology with onsemi's renowned craftsmanship. Experience superior performance in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 13.5A (Ta), 22A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 10mOhm @ 13.5A, 10V
- Vgs(th) (Max) @ Id: 3V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 24 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 1605 pF @ 15 V
- FET Feature: -
- Power Dissipation (Max): 2.5W (Ta), 29W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-PQFN (5x6)
- Package / Case: 8-PowerTDFN
