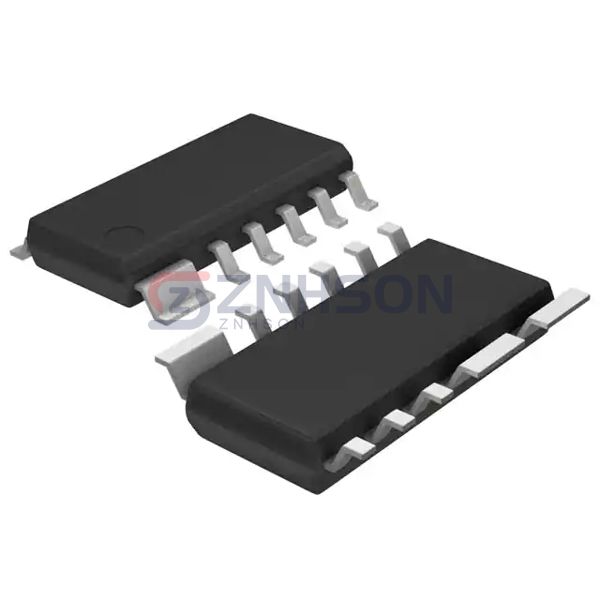

FDQ7698S
onsemi
onsemi
MOSFET 2N-CH 30V 12A/15A 14SOIC
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The FDQ7698S by onsemi is a top-tier selection in the Discrete Semiconductor Products range. This Transistors - FETs, MOSFETs - Arrays unit boasts high current capacity and excellent thermal performance, making it a go-to solution for power electronics. Whether you're working on electric vehicles, solar inverters, or industrial machinery, the FDQ7698S offers superior functionality and longevity. Trust onsemi to provide semiconductor components that push the boundaries of innovation.
Specifications
- Product Status: Obsolete
- FET Type: 2 N-Channel (Dual)
- FET Feature: Logic Level Gate
- Drain to Source Voltage (Vdss): 30V
- Current - Continuous Drain (Id) @ 25°C: 12A, 15A
- Rds On (Max) @ Id, Vgs: 7.5mOhm @ 15A, 10V
- Vgs(th) (Max) @ Id: 3V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 17nC @ 5V
- Input Capacitance (Ciss) (Max) @ Vds: 1324pF @ 15V
- Power - Max: 1.1W, 1.3W
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 14-SOIC (0.154", 3.90mm Width), 11 Leads, Fused Leads
- Supplier Device Package: 14-SO
