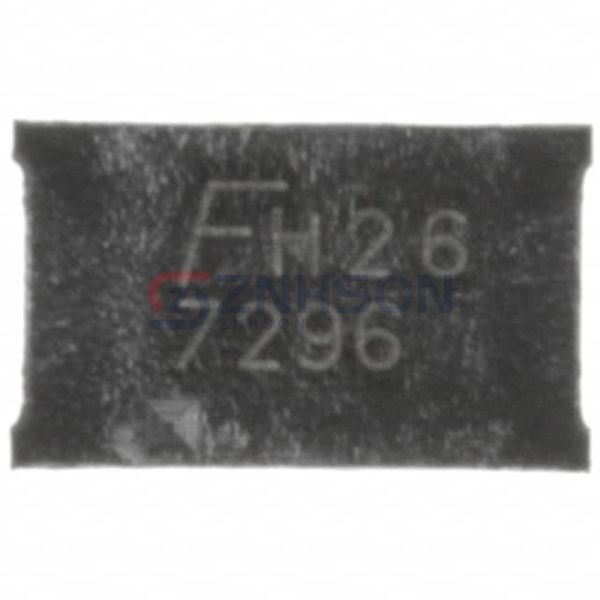

FDZ7296
Fairchild Semiconductor
Fairchild Semiconductor
MOSFET N-CH 30V 11A 18BGA
$0.67
Available to order
Reference Price (USD)
1+
$0.67000
500+
$0.6633
1000+
$0.6566
1500+
$0.6499
2000+
$0.6432
2500+
$0.6365
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The FDZ7296 from Fairchild Semiconductor sets new standards in the Transistors - FETs, MOSFETs - Single market. This Discrete Semiconductor Product delivers exceptional performance in switching regulators, class D amplifiers, and power management ICs. Featuring advanced silicon technology and robust packaging, it's built to withstand rigorous operating conditions. When quality matters, professionals turn to Fairchild Semiconductor's FDZ7296 for their critical applications.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 11A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 8.5mOhm @ 11A, 10V
- Vgs(th) (Max) @ Id: 3V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 31 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 1520 pF @ 15 V
- FET Feature: -
- Power Dissipation (Max): 2.1W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 18-BGA (2.5x4)
- Package / Case: 18-WFBGA
