FGH75T65SHDT-F155
onsemi
onsemi
IGBT 650V 150A 455W TO-247
$8.32
Available to order
Reference Price (USD)
1+
$7.61000
10+
$6.90200
450+
$5.51251
900+
$5.04946
1,350+
$4.43205
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The FGH75T65SHDT-F155 Single IGBT transistor by onsemi is a versatile component in the Discrete Semiconductor Products range. Designed for efficiency and durability, it features high voltage tolerance and minimal power dissipation. Ideal for use in automotive electronics, HVAC systems, and power tools, the FGH75T65SHDT-F155 provides consistent performance in varied conditions. Rely on onsemi's innovation to power your next-generation devices with this high-quality IGBT.
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 650 V
- Current - Collector (Ic) (Max): 150 A
- Current - Collector Pulsed (Icm): 225 A
- Vce(on) (Max) @ Vge, Ic: 2.1V @ 15V, 75A
- Power - Max: 455 W
- Switching Energy: 3mJ (on), 750µJ (off)
- Input Type: Standard
- Gate Charge: 123 nC
- Td (on/off) @ 25°C: 28ns/86ns
- Test Condition: 400V, 75A, 3Ohm, 15V
- Reverse Recovery Time (trr): 76 ns
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247-3
Related Products
Rohm Semiconductor
RGT40NL65DGTL
STMicroelectronics
STGWT80V60DF
IXYS
IXYX25N250CV1HV
Fairchild Semiconductor
FGA40T65SHDF
onsemi
ISL9V3040P3
onsemi
FGH40N65UFDTU
onsemi
ISL9V3040S3ST-F085C
IXYS
IXXH50N60C3
IXYS
IXLF19N250A

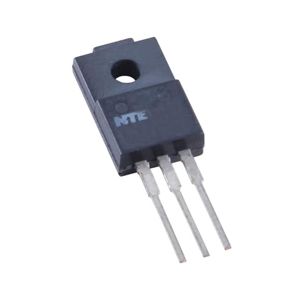

NTE Electronics, Inc
