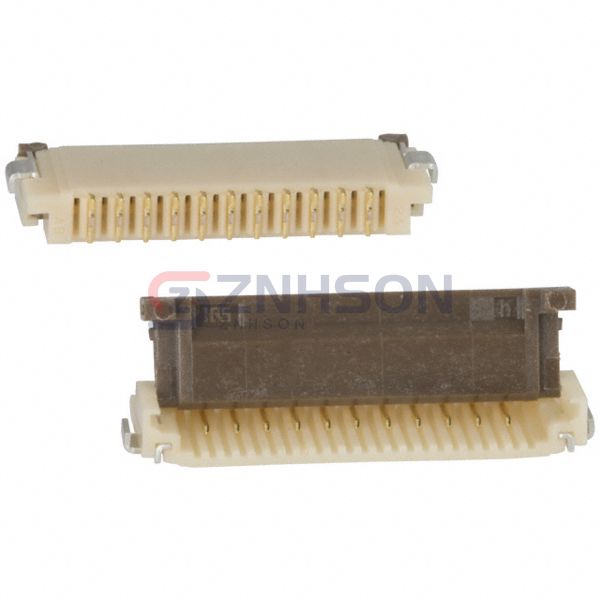

FH12-11S-1SH(1)(98)
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN FFC BOTTOM 11POS 1.00MM R/A
$1.53
Available to order
Reference Price (USD)
500+
$1.26000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Introducing the FH12-11S-1SH(1)(98) FFC/FPC Connectors from Hirose Electric Co Ltd, where cutting-edge design meets uncompromising quality. These connectors are optimized for ultra-thin devices, offering a 0.3mm pitch option and a stack height as low as 1.0mm. The FH12-11S-1SH(1)(98) series shines in battery management systems, LED displays, and portable diagnostic tools, thanks to its vibration resistance and IP-rated variants. Hirose Electric Co Ltd's eco-friendly manufacturing process adheres to RoHS directives, aligning with sustainable practices. Opt for FH12-11S-1SH(1)(98) when your project demands space efficiency without sacrificing performance.
Specifications
- Product Status: Active
- Flat Flex Type: FFC, FPC
- Mounting Type: Surface Mount, Right Angle
- Connector/Contact Type: Contacts, Bottom
- Number of Positions: 11
- Pitch: 0.039" (1.00mm)
- Termination: Solder
- FFC, FCB Thickness: 0.30mm
- Height Above Board: 0.079" (2.00mm)
- Locking Feature: Flip Lock
- Cable End Type: Straight
- Contact Material: Phosphor Bronze
- Contact Finish: Gold
- Housing Material: Polyamide (PA), Nylon
- Actuator Material: Polyphenylene Sulfide (PPS)
- Features: Solder Retention, Zero Insertion Force (ZIF)
- Voltage Rating: 50V
- Operating Temperature: -40°C ~ 85°C
- Material Flammability Rating: UL94 V-0
