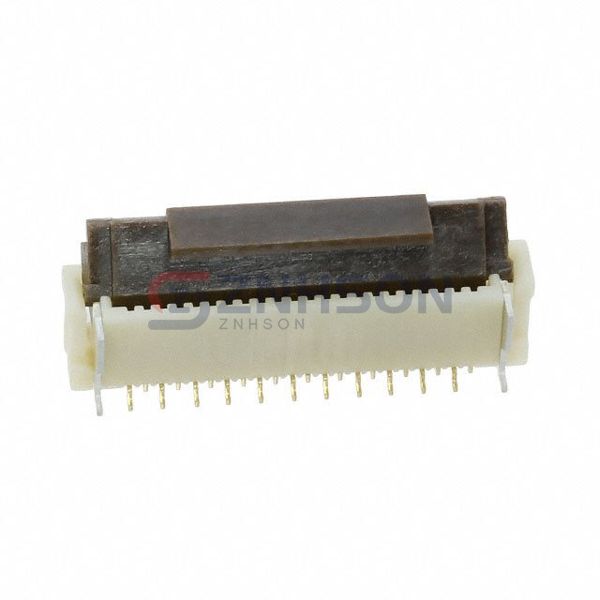

FH12-22S-0.5SVA(54)
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN FFC VERT 22POS 0.50MM SMD
$1.80
Available to order
Reference Price (USD)
1,000+
$0.85500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the high-quality FH12-22S-0.5SVA(54) FFC/FPC Connectors from Hirose Electric Co Ltd, designed for reliable and flexible interconnections in compact electronic devices. These connectors feature a low-profile design, excellent durability, and superior signal integrity, making them ideal for high-density applications. The FH12-22S-0.5SVA(54) series ensures secure connections with precision-engineered contacts and robust housings. Commonly used in smartphones, tablets, laptops, and automotive electronics, these connectors provide seamless data and power transmission. Trust Hirose Electric Co Ltd for cutting-edge FFC/FPC solutions that enhance your device's performance and longevity.
Specifications
- Product Status: Active
- Flat Flex Type: FFC, FPC
- Mounting Type: Surface Mount
- Connector/Contact Type: Contacts, Vertical - 1 Sided
- Number of Positions: 22
- Pitch: 0.020" (0.50mm)
- Termination: Solder
- FFC, FCB Thickness: 0.30mm
- Height Above Board: 0.142" (3.60mm)
- Locking Feature: Flip Lock
- Cable End Type: Straight
- Contact Material: Phosphor Bronze
- Contact Finish: Gold
- Housing Material: Polyamide (PA), Nylon
- Actuator Material: Polyphenylene Sulfide (PPS)
- Features: Solder Retention, Zero Insertion Force (ZIF)
- Voltage Rating: 50V
- Operating Temperature: -40°C ~ 85°C
- Material Flammability Rating: UL94 V-0
