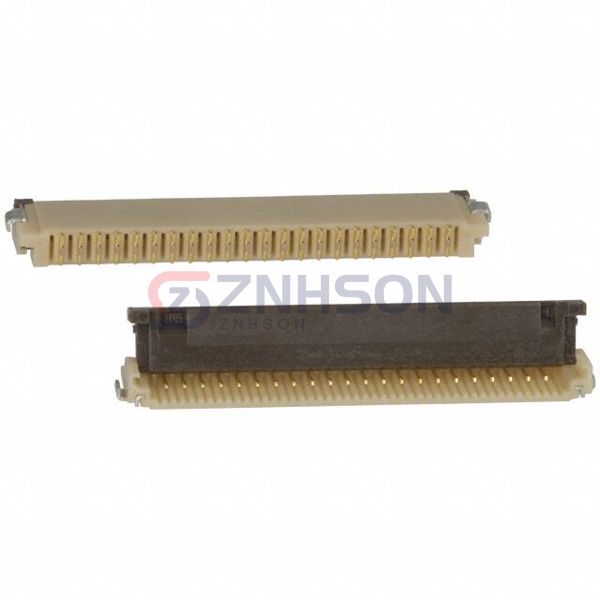

FH12-22S-1SH(1)(98)
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN FFC BOTTOM 22POS 1.00MM R/A
$1.91
Available to order
Reference Price (USD)
500+
$1.64500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic assemblies with the FH12-22S-1SH(1)(98) FFC/FPC Connectors by Hirose Electric Co Ltd, engineered for precision and reliability. These connectors offer exceptional flexibility, high-speed data transfer, and resistance to vibration, perfect for modern portable devices. The FH12-22S-1SH(1)(98) model boasts a compact form factor, easy insertion/removal, and compatibility with various FFC/FPC cable types. Widely utilized in medical equipment, drones, and industrial automation, Hirose Electric Co Ltd's connectors ensure stable performance in demanding environments. Choose FH12-22S-1SH(1)(98) for a seamless connection solution that meets your technical and space-saving needs.
Specifications
- Product Status: Active
- Flat Flex Type: FFC, FPC
- Mounting Type: Surface Mount, Right Angle
- Connector/Contact Type: Contacts, Bottom
- Number of Positions: 22
- Pitch: 0.039" (1.00mm)
- Termination: Solder
- FFC, FCB Thickness: 0.30mm
- Height Above Board: 0.079" (2.00mm)
- Locking Feature: Flip Lock
- Cable End Type: Straight
- Contact Material: Phosphor Bronze
- Contact Finish: Gold
- Housing Material: Polyamide (PA), Nylon
- Actuator Material: Polyphenylene Sulfide (PPS)
- Features: Solder Retention, Zero Insertion Force (ZIF)
- Voltage Rating: 50V
- Operating Temperature: -40°C ~ 85°C
- Material Flammability Rating: UL94 V-0
Related Products
Amphenol ICC (FCI)
59453-121110EDHLF
Molex
504754-1540
Hirose Electric Co Ltd
FH12-11S-1SH(55)
Molex
0528082671
JAE Electronics
FA5S040HP1
KYOCERA AVX
046244414010846+
Panasonic Electric Works
AYF333335A
TE Connectivity AMP Connectors
487925-1
TE Connectivity AMP Connectors

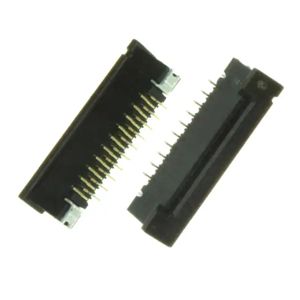

2-1734742-0
