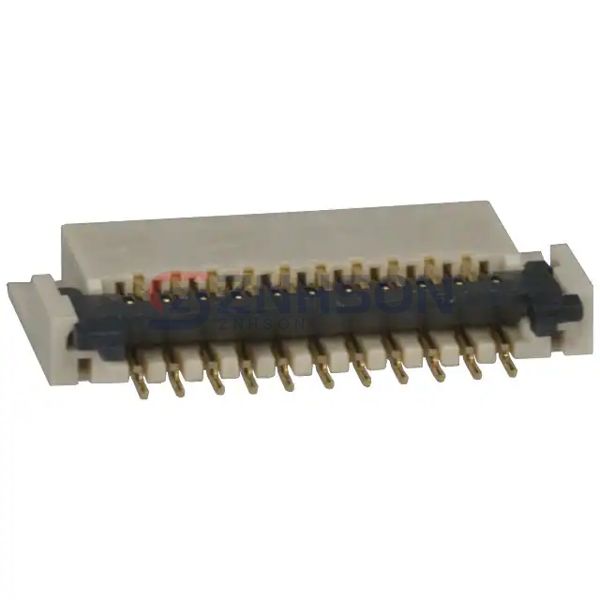

FH23-21S-0.3SHAW(05)
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN FPC BOTTOM 21POS 0.30MM R/A
$1.77
Available to order
Reference Price (USD)
2,500+
$0.99820
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize your device's potential with Hirose Electric Co Ltd's FH23-21S-0.3SHAW(05) FFC/FPC Connectors the epitome of precision and adaptability. These connectors feature a unique combination of bend resistance, high pin density, and corrosion-resistant materials, ensuring longevity in dynamic environments. The FH23-21S-0.3SHAW(05) is particularly suited for AR/VR headsets, automotive infotainment, and military communications. With Hirose Electric Co Ltd's patented contact technology, signal loss is minimized even at high frequencies. Whether for prototyping or mass production, FH23-21S-0.3SHAW(05) offers a scalable solution for all your flexible connection requirements.
Specifications
- Product Status: Active
- Flat Flex Type: FPC
- Mounting Type: Surface Mount, Right Angle
- Connector/Contact Type: Contacts, Bottom
- Number of Positions: 21
- Pitch: 0.012" (0.30mm)
- Termination: Solder
- FFC, FCB Thickness: 0.20mm
- Height Above Board: 0.049" (1.25mm)
- Locking Feature: Flip Lock
- Cable End Type: Tapered
- Contact Material: Phosphor Bronze
- Contact Finish: Gold
- Housing Material: Liquid Crystal Polymer (LCP), Halogen Free
- Actuator Material: Liquid Crystal Polymer (LCP), Halogen Free
- Features: Low Insertion Force (LIF)
- Voltage Rating: 30V
- Operating Temperature: -55°C ~ 85°C
- Material Flammability Rating: UL94 V-0
