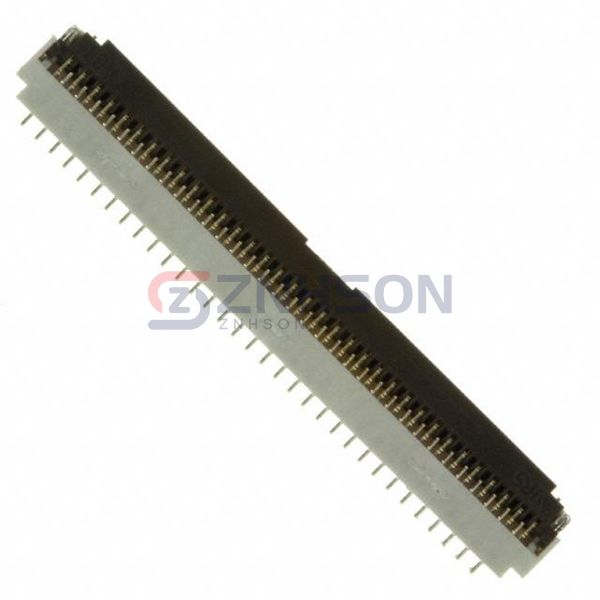

FH26G-67S-0.3SHBW(05)
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN FPC BOTTOM 67POS 0.30MM R/A
$2.80
Available to order
Reference Price (USD)
5,000+
$1.36500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Introducing the FH26G-67S-0.3SHBW(05) FFC/FPC Connectors from Hirose Electric Co Ltd, where cutting-edge design meets uncompromising quality. These connectors are optimized for ultra-thin devices, offering a 0.3mm pitch option and a stack height as low as 1.0mm. The FH26G-67S-0.3SHBW(05) series shines in battery management systems, LED displays, and portable diagnostic tools, thanks to its vibration resistance and IP-rated variants. Hirose Electric Co Ltd's eco-friendly manufacturing process adheres to RoHS directives, aligning with sustainable practices. Opt for FH26G-67S-0.3SHBW(05) when your project demands space efficiency without sacrificing performance.
Specifications
- Product Status: Active
- Flat Flex Type: FPC
- Mounting Type: Surface Mount, Right Angle
- Connector/Contact Type: Contacts, Bottom
- Number of Positions: 67
- Pitch: 0.012" (0.30mm)
- Termination: Solder
- FFC, FCB Thickness: 0.20mm
- Height Above Board: 0.039" (1.00mm)
- Locking Feature: Flip Lock
- Cable End Type: Tapered
- Contact Material: Phosphor Bronze
- Contact Finish: Gold
- Housing Material: Liquid Crystal Polymer (LCP)
- Actuator Material: Polyamide (PA), Nylon
- Features: Zero Insertion Force (ZIF)
- Voltage Rating: 30V
- Operating Temperature: -55°C ~ 85°C
- Material Flammability Rating: UL94 V-0
Related Products
Amphenol ICC (FCI)
SFW5S-2STME1LF
Molex
501951-2210
Cvilux USA
CF07201U0R0-NH
TE Connectivity AMP Connectors
5-487509-5
Amphenol ICC (FCI)

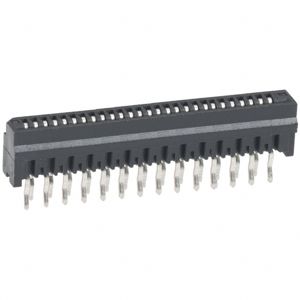

HLW27S-2C7LF
Omron Electronics Inc-EMC Div

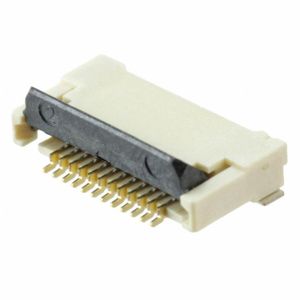

XF2M-1215-1A-R100
GCT

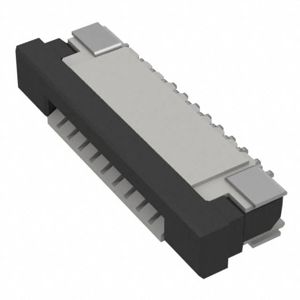

FFC3B07-09-T
Adam Tech
PCB-C-12-T-SMT
Molex

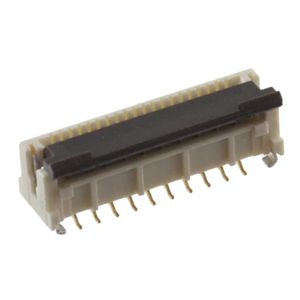

5019512010
