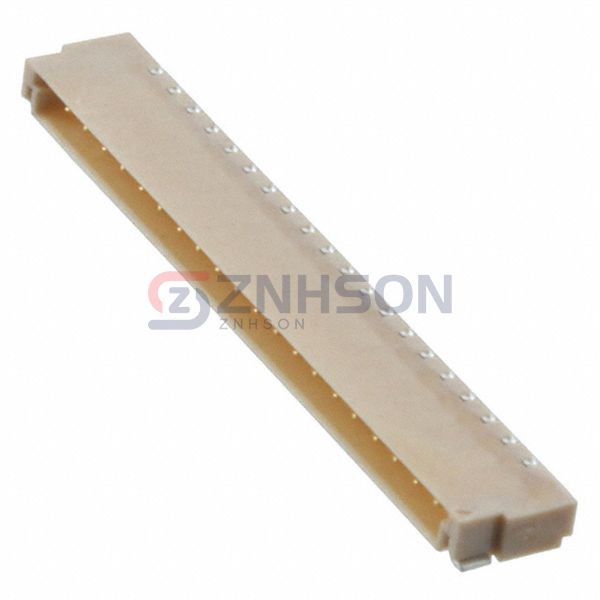

FI-S20P-HFE-E1500
JAE Electronics
JAE Electronics
CONN HEADER SMD R/A 20POS 1.25MM
$3.67
Available to order
Reference Price (USD)
1,500+
$1.74223
3,000+
$1.68001
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the FI-S20P-HFE-E1500 rectangular connector header from JAE Electronics for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. JAE Electronics is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Male Pin
- Pitch - Mating: 0.049" (1.25mm)
- Number of Positions: 20
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.071" (1.80mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin or Tin-Alloy
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
- Features: Solder Retention
- Operating Temperature: -40°C ~ 80°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Beige
- Current Rating (Amps): 1A per Contact
- Voltage Rating: 200V
