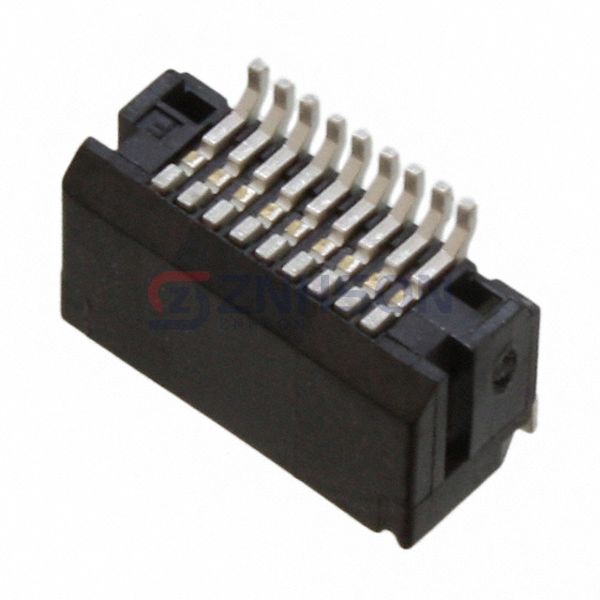

FI-W9P-HFE
JAE Electronics
JAE Electronics
CONN HEADER SMD R/A 9POS 1.25MM
$2.57
Available to order
Reference Price (USD)
1+
$3.25000
10+
$3.12000
100+
$2.60000
500+
$2.21000
1,000+
$1.88500
5,000+
$1.69000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the FI-W9P-HFE rectangular connector header by JAE Electronics. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the FI-W9P-HFE ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust JAE Electronics for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Male Pin
- Pitch - Mating: 0.049" (1.25mm)
- Number of Positions: 9
- Number of Rows: 2
- Row Spacing - Mating: 0.055" (1.40mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: 0.094" (2.40mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.146" (3.70mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin or Tin-Alloy
- Contact Material: Copper Alloy
- Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
- Features: Solder Retention
- Operating Temperature: -40°C ~ 80°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A per Contact
- Voltage Rating: 200V
Related Products
Samtec Inc.
TMM-140-03-S-D
Samtec Inc.
TMM-110-01-TM-D-SM-A-P
Amphenol ICC (FCI)
20021121-00018D4LF
Samtec Inc.

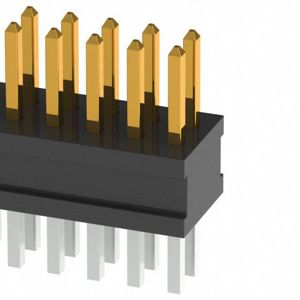

FTSH-146-04-F-D
Molex

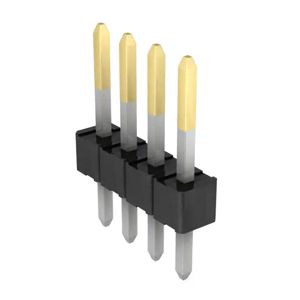

0022284045
Sullins Connector Solutions

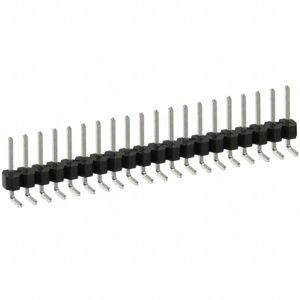

PEC20SBAN
Samtec Inc.

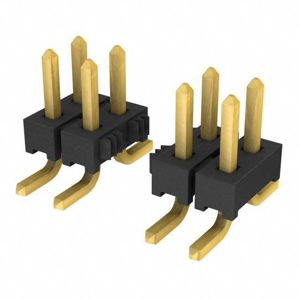

TMM-108-06-G-D-SM-P
