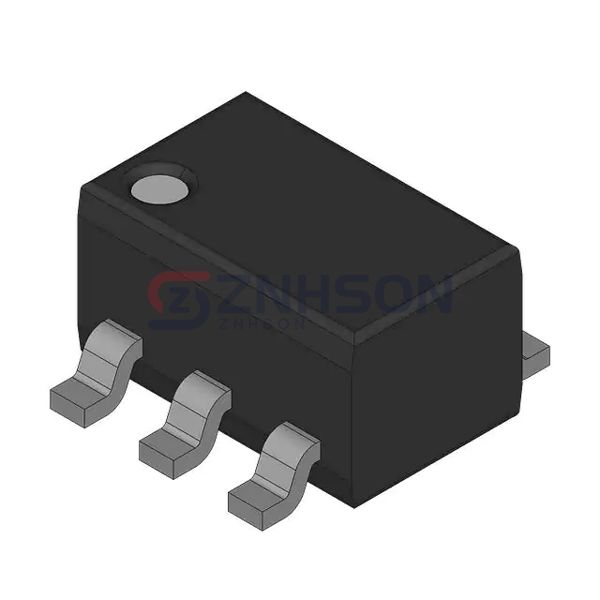

FSA2156P6X
Fairchild Semiconductor
Fairchild Semiconductor
LOW VOLTAGE SPST 0.4 OHM ANALOG
$0.27
Available to order
Reference Price (USD)
1+
$0.27000
500+
$0.2673
1000+
$0.2646
1500+
$0.2619
2000+
$0.2592
2500+
$0.2565
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Fairchild Semiconductor's FSA2156P6X redefines reliability in Analog Switch ICs with its 10-million operation endurance rating and <1ns skew between channels. This Interface solution incorporates adaptive power management that reduces consumption during idle periods by 90%. The FSA2156P6X is transforming signal routing in: satellite transponders, fusion reactor diagnostics, atomic clock synchronizers, and Mars rover instrumentation packages. Its radiation-tolerant design (100krad TID) and single-event upset immunity make it the go-to choice for space applications. Commercial implementations include premium automotive infotainment crosspoint switches and millimeter-wave test equipment.
Specifications
- Product Status: Active
- Switch Circuit: SPST - NO
- Multiplexer/Demultiplexer Circuit: 1:1
- Number of Circuits: 1
- On-State Resistance (Max): 360mOhm (Typ)
- Channel-to-Channel Matching (ΔRon): -
- Voltage - Supply, Single (V+): 1.65V ~ 4.3V
- Voltage - Supply, Dual (V±): 1.65V ~ 4.3V
- Switch Time (Ton, Toff) (Max): 55ns, 65ns
- -3db Bandwidth: 80MHz
- Charge Injection: 6pC
- Channel Capacitance (CS(off), CD(off)): 38pF
- Current - Leakage (IS(off)) (Max): 10nA
- Crosstalk: -
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 6-TSSOP, SC-88, SOT-363
- Supplier Device Package: SC-88 (SC-70-6)
