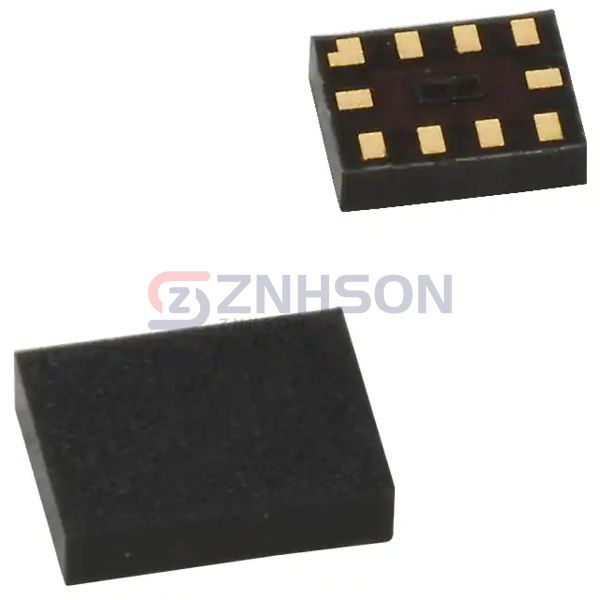

FSA2257L10X
onsemi
onsemi
IC SWITCH DUAL SPDT 10MICROPAK
$1.59
Available to order
Reference Price (USD)
5,000+
$0.38570
10,000+
$0.37120
25,000+
$0.35960
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the FSA2257L10X - onsemi's most advanced configurable analog switch IC, featuring programmable channel sequencing and built-in self-test capabilities. As a star product in our Interface components range, it offers 64:1 multiplexing ratio in compact QFN packages. The FSA2257L10X enables next-generation designs in quantum computing control systems, telescope focal plane arrays, and neural interface prosthetics. Its dynamic on-resistance compensation technology maintains consistent performance across temperature variations. Other notable applications include: particle accelerator beam controls, underwater sonar arrays, and high-energy physics detector readout systems.
Specifications
- Product Status: Active
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 2
- On-State Resistance (Max): 1.15Ohm
- Channel-to-Channel Matching (ΔRon): 60mOhm
- Voltage - Supply, Single (V+): 1.65V ~ 5.5V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 35ns, 15ns
- -3db Bandwidth: 200MHz
- Charge Injection: 10pC
- Channel Capacitance (CS(off), CD(off)): 12pF
- Current - Leakage (IS(off)) (Max): 2nA
- Crosstalk: -75dB @ 1MHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 10-UFQFN Exposed Pad
- Supplier Device Package: 10-MicroPak™
