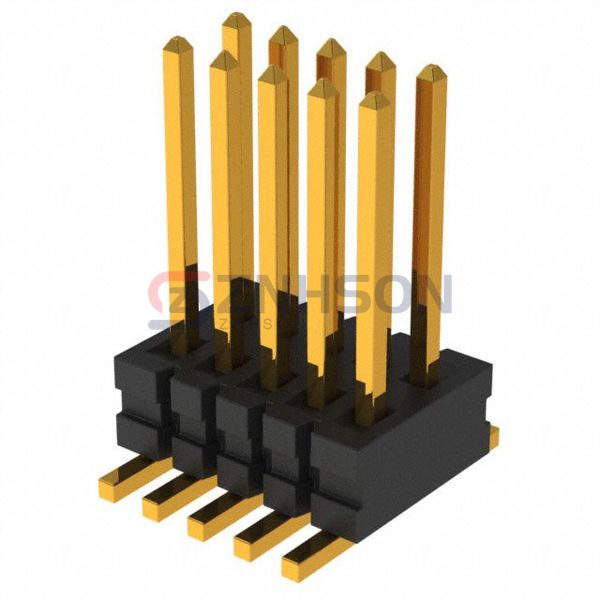

FTE-105-01-G-DV
Samtec Inc.
Samtec Inc.
CONN HEADER SMD 10POS 0.8MM
$2.17
Available to order
Reference Price (USD)
1+
$1.98000
10+
$1.79700
25+
$1.68680
50+
$1.61340
100+
$1.54000
250+
$1.39332
500+
$1.28332
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The FTE-105-01-G-DV male pin header by Samtec Inc. offers a dependable solution for rectangular connectors. Designed for easy integration, these headers ensure consistent connectivity in demanding environments. Features include high-temperature resistance and superior contact stability. Applications range from industrial machinery to smart home systems. Choose Samtec Inc. for connectors that combine innovation with durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.031" (0.80mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.047" (1.20mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.075" (1.90mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.055" (1.40mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.7A per Contact
- Voltage Rating: -
