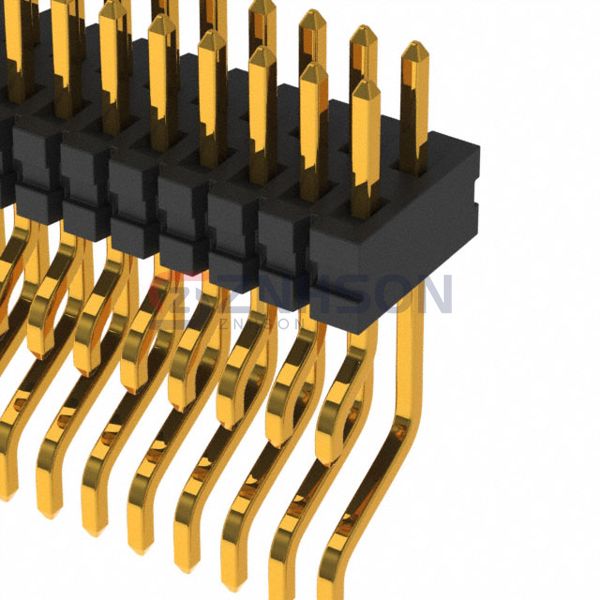

FTE-176-01-G-DH
Samtec Inc.
Samtec Inc.
CONN HEADER SMD R/A 152P 0.8MM
$26.81
Available to order
Reference Price (USD)
1+
$26.81000
10+
$24.19900
25+
$23.18520
50+
$21.73600
100+
$21.01150
250+
$19.85220
500+
$19.27260
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the FTE-176-01-G-DH rectangular connector header from Samtec Inc.. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the FTE-176-01-G-DH meets the highest industry standards. Samtec Inc. provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.031" (0.80mm)
- Number of Positions: 152
- Number of Rows: 2
- Row Spacing - Mating: 0.047" (1.20mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.075" (1.90mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.120" (3.05mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.7A per Contact
- Voltage Rating: -
Related Products
3M
929836-09-33
Molex
0039299243
Samtec Inc.

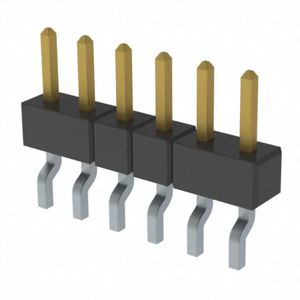

MMT-106-01-L-SH-TR
Harwin Inc.

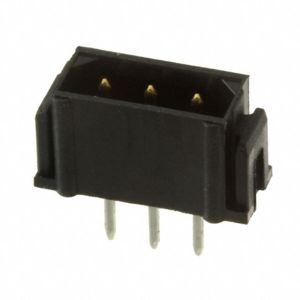

M80-8790322
Samtec Inc.
TFM-140-02-L-D-LC
Sullins Connector Solutions

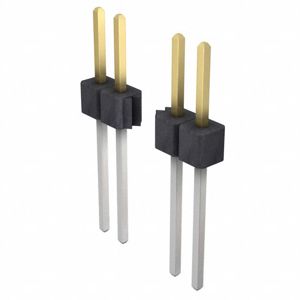

PBC22SADN
Samtec Inc.

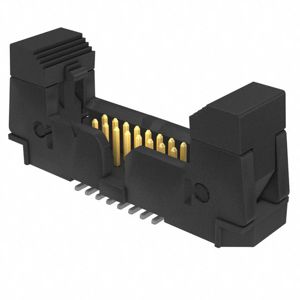

EHF-108-01-F-D-SM-P
Samtec Inc.

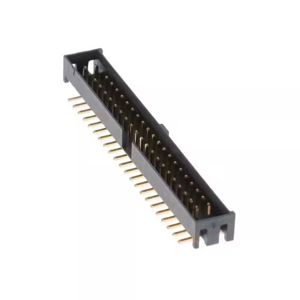

STMM-122-02-G-D-SM-P
Samtec Inc.

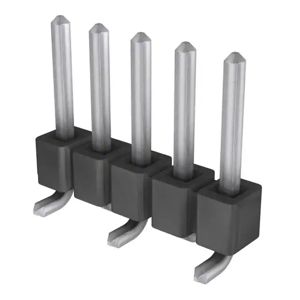

TSM-105-01-TM-SV
